| ₹ 219.76 includes GST and import duties. | |
| B2B customers can avail ₹ 33.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

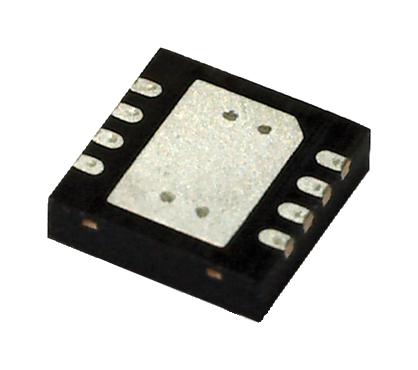

The NCP45520IMNTWG-H is an ecoSWITCH advanced load management controlled load switch with low RON in 8 pin DFN package. This load switch provides a component and area reducing solution for efficient power domain switching with inrush current limit via soft start. In addition to integrated control functionality with ultra low on-resistance, this device offers system safeguards and monitoring via fault protection and power good signalling. This cost effective solution is ideal for power management and hot swap applications requiring low power consumption in a small footprint.
- Active-high EN polarity
- Advanced controller with charge pump
- Integrated N-channel MOSFET with low RON
- Input voltage range from 0.5V to 13.5V and supply voltage range from 3V to 5.5V
- Maximum on-resistance of 12.7mohm at VCC = 3.3V, VIN = 1.8V
- Soft start via controlled slew rate
- Power good signal, thermal shutdown undervoltage lockout
- Short circuit protection and extremely low standby current
- Load bleed (quick discharge)
- Ambient temperature range from -40°C to 85°C
Power Management, Portable Devices, Consumer Electronics
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ONSEMI |
| Part Number | NCP45520IMNTWG-H |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 215.36 |
| 3-5 | ₹ 213.17 |
| 5-10 | ₹ 208.77 |
| 10+ | ₹ 204.38 |
Bulk discount will be automatically applied during checkout based on quantity.
