| ₹ 79.95 includes GST and import duties. | |
| B2B customers can avail ₹ 12.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

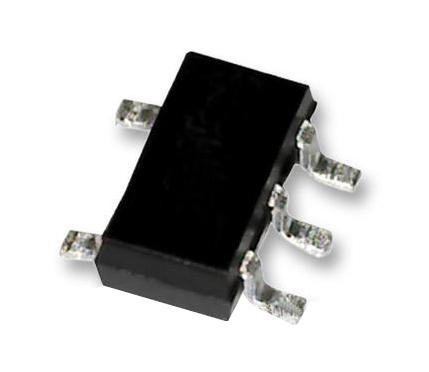

The NCP380HSN05AAT1G is a high-side Power Distribution Switch designed for applications where heavy capacitive loads and short-circuits are likely to be encountered. The device limits the output current to a desired level by switching into a regulation current-mode when the output load exceeds the current-limit threshold or a short is present. The current limit threshold is either user adjustable between 100mA and 2.1A via an external resistor or internally fixed. The power switch rise and fall times are controlled to minimize current ringing during switching. An internal reverse-voltage detection comparator disables the power-switch if the output voltage is higher than the input voltage to protect devices on the input side of the switch. The /FLAG logic output asserts low during over current, reverse-voltage or over temperature conditions. The switch is controlled by a logic enable input active high or low.
- Adjustable and fixed current limit
- Under voltage lockout
- Built-in soft start
- Thermal protection
- Soft turn-off
- Reverse voltage protection
- Enable active high or low
Applications
Portable Devices, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Load Switch Type: High Side |
| Input Voltage: 5.5V |
| Current Limit: 500mA |
| On State Resistance: 0.07ohm |
| Distribution Switch Case Style: TSOP |
| No. of Pins: 5Pins |
| Thermal Protection: Yes |
| On / Enable Input Polarity: Active High |
| No. of Outputs: 1Outputs |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | NCP380HSN05AAT1G |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78.35 |
| 3-5 | ₹ 77.55 |
| 5-10 | ₹ 75.95 |
| 10+ | ₹ 74.35 |
Bulk discount will be automatically applied during checkout based on quantity.
