NCN5150 is a single chip transceiver for M-Bus (Meter-Bus applications). It meets the European Standards EN 13757-2 & EN 1434-3 for remote reading of water, gas and electricity meters.
- UART communication speeds up to 38400 baud
- Integrated 3.3 V VDD LDO regulator with extended peak current capability of 15 mA
- Adjustable I/O levels
- Adjustable constant current sink up to 2 or 6 unit loads depending on the package
- Low bus voltage operation
- Extended current budget for external circuits: at least 0.88 mA
- Polarity independent
- Power-fail function
- Fast start-up - no external transistor required on STC pin
- Industrial grade device
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ONSEMI |
| Part Number |
NCN5150MNTWG |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

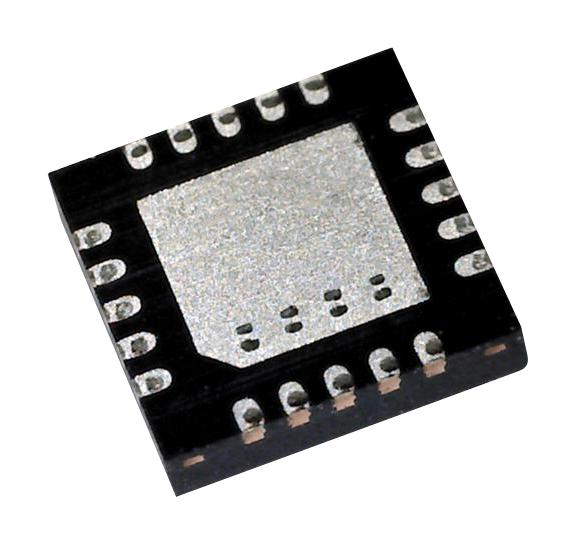

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
