| ₹ 606.83 includes GST and import duties. | |
| B2B customers can avail ₹ 92.54 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

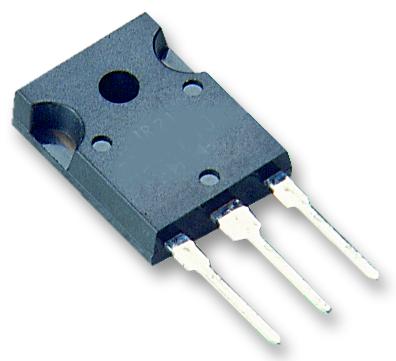

The MJH11022G is a 250V NPN Darlington Bipolar Power Transistor designed for use as general purpose amplifiers, low frequency switching and motor control applications. The MJH11021 (PNP) and MJH11022 (NPN) are complementary devices.
- High DC current gain
- 250VDC Minimum collector-emitter sustaining voltage (VCEO(sus))
- Low collector-emitter saturation voltage (VCE (sat))
- Monolithic construction
- 250VDC Collector to base voltage (VCBO)
- 5V Emitter to base voltage (VEBO)
- 30ADC Peak collector current
- 0.5A DC Base current (IB)
- 0.83°C/W Thermal resistance, junction to case
Applications
Industrial, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Transistor Polarity: NPN |
| No. of Pins: 3Pins |
| Transistor Mounting: Through Hole |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
Other details
| Brand | ONSEMI |
| Part Number | MJH11022G |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 594.69 |
| 3-5 | ₹ 588.63 |
| 5-10 | ₹ 576.49 |
| 10+ | ₹ 564.35 |
Bulk discount will be automatically applied during checkout based on quantity.
