Description

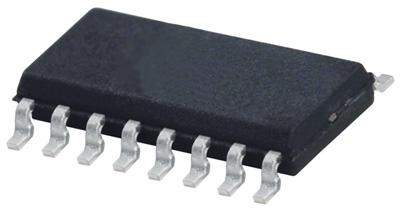

The MC1413BDR2G is a NPN high current Darlington Bipolar Transistor Array suitable for driving lamps, relays or printer hammers in a variety of industrial and consumer applications. It has high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500mA permit them to drive incandescent lamps. The device with a 2.7kR series input resistor is well suited for systems utilizing a 5V TTL or CMOS logic.
- High voltage
- -40 to 85°C Operating ambient temperature range
Applications
Lighting, Power Management, Consumer Electronics, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Supply Voltage Min: - |
| Supply Voltage Max: 3V |
| No. of Outputs: 7Outputs |
| Output Voltage: 50V |
| Output Current: 500mA |
| Driver Case Style: SOIC |
| Product Range: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | MC1413BDR2G |
| Quantity | |
| Technical Data Sheet EN |  |
