| ₹ 85.3 includes GST and import duties. | |
| B2B customers can avail ₹ 13.01 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

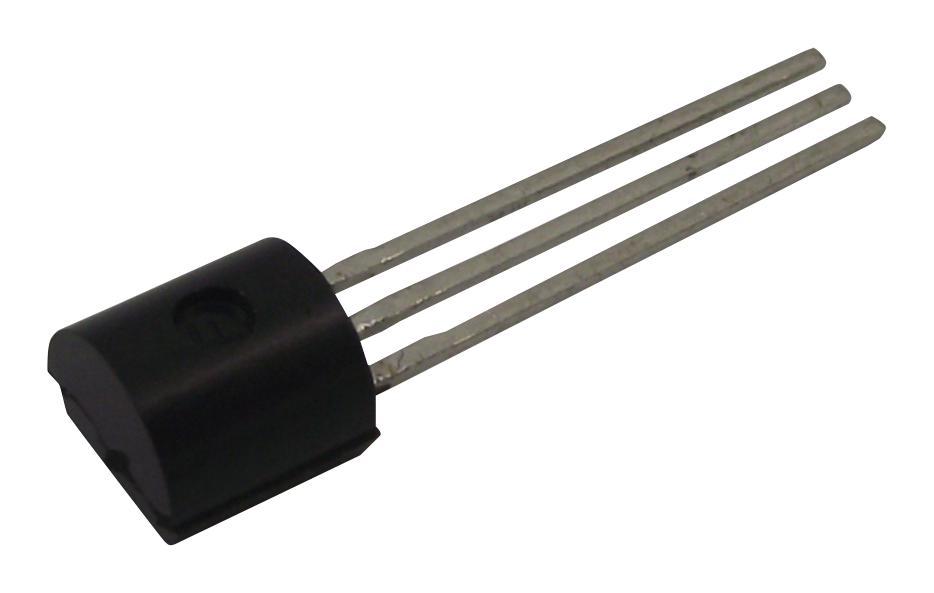

The LP2950ACZ-5.0G is a low power, micropower low dropout (LDO) voltage regulator in 3 pin TO-92 package. It is specifically designed to maintain proper regulation with an extremely low input to output voltage differential. This device features a very low quiescent bias current of 75µA and it is capable of supplying output currents in excess of 100mA. Due to low input to output voltage differential and bias current specifications, the device is ideally suited for battery powered applications.
- Fixed output voltage of 5V
- Initial output voltage tolerance of 0.5%
- Dropout voltage of 350mV at IO = 100mA
- Extremely tight line and load regulation
- Requires only 1µF output capacitor for stability
- Internal current and thermal limiting
- Line regulation (Vin = VO(nom) 1.0V to 30V) of 0.04%
- Load regulation (IO = 100µA to 100mA) of 0.05%
- Output noise voltage (10Hz to 100KHz) of 126µVrms at CL = 1.0µF and 56µVrms at CL = 100µF
- Operating ambient temperature range from -40° to +125°C
Power Management, Industrial, Consumer Electronics
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ONSEMI |
| Part Number | LP2950ACZ-5.0G |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 83.59 |
| 3-5 | ₹ 82.74 |
| 5-10 | ₹ 81.04 |
| 10+ | ₹ 79.33 |
Bulk discount will be automatically applied during checkout based on quantity.
