| ₹ 714.51 includes GST and import duties. | |
| B2B customers can avail ₹ 108.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The HGT1S10N120BNST is a N-channel Non-punch Through (NPT) IGBT ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as UPS and solar inverter. It is new member of the MOS gated high voltage switching IGBT family. It combines the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low ON-state conduction loss of a bipolar transistor.
- Short-circuit rating
- Avalanche rated
- 2.45V @ IC = 10A Low saturation voltage
- 140ns Fall time @ TJ = 150°C
- 298W Total power dissipation @ TC = 25°C
Power Management, Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ONSEMI |
| Part Number | HGT1S10N120BNST |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Product Change Notice EN | |

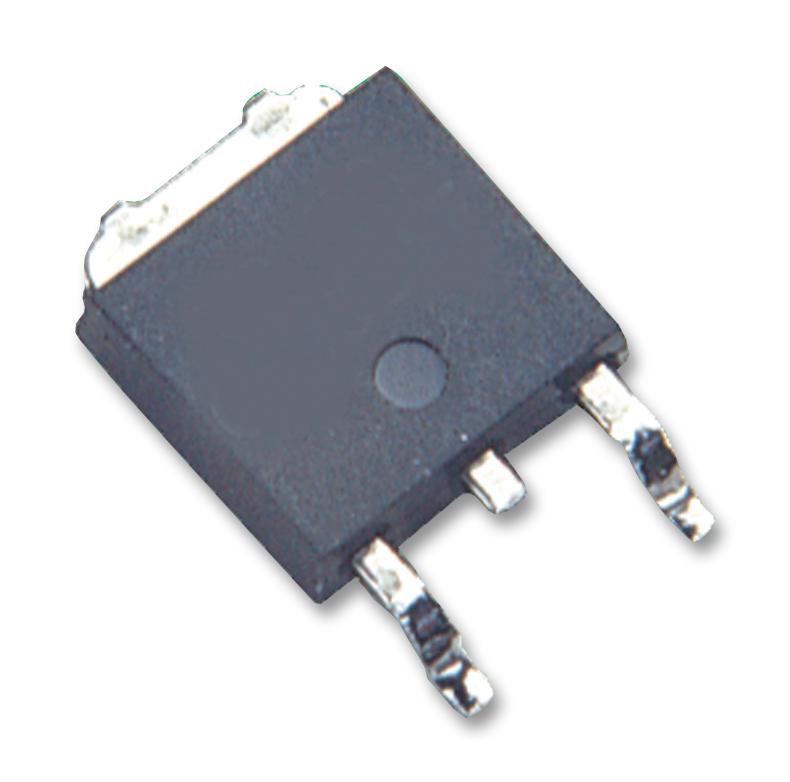

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 700.22 |
| 3-5 | ₹ 693.07 |
| 5-10 | ₹ 678.78 |
| 10+ | ₹ 664.49 |
Bulk discount will be automatically applied during checkout based on quantity.
