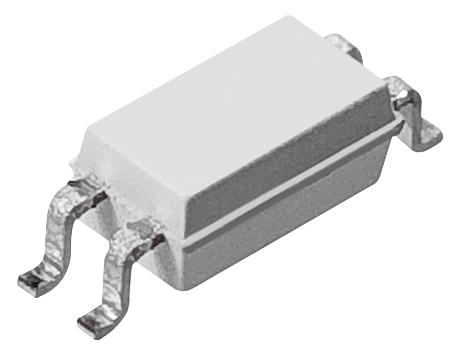

The FODM8801CR2 is a high-temperature Phototransistor Optocoupler utilizing leading-edge, process technology to achieve high operating temperature characteristics, up to 125°C. The OptoHiT� series optocoupler consists of an aluminium gallium arsenide (AlGaAs) infrared light emitting diode (LED) optically coupled to a phototransistor. It delivers high current transfer ratio at very low input current. The input-output isolation voltage (VISO) is rated at 3750VACRMS. It is suitable for ground-loop isolation, signal-noise isolation and DC-DC converter.
- Utilizing proprietary process technology to achieve high operating temperature up to 125°C
- Excellent CTR linearity at high temperature
- High isolation voltage
- Applicable to infrared ray reflow, 245°C
- >5mm Creepage and clearance distance
- 565V maximum working insulation voltage
- 6000V high allowable overvoltage
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ONSEMI |
| Part Number |
FODM8801CR2 |
| Quantity |
|
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
