Description

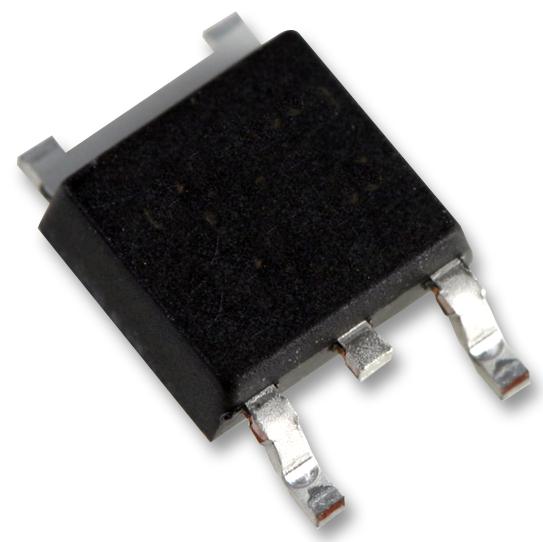

FDD9409-F085 is a N-channel PowerTrench® MOSFET. Application includes automotive engine control, powertrain management, solenoid and motor drivers, electronic steering, integrated starter/alternator, distributed Power Architectures and VRM, primary switch for 12V systems.
- Drain-to-source on resistance is 2.3mohm(typ, TJ = 25°C, ID = 80A, VGS= 10V)
- 42nC typical total gate charge at 10V (VGS = 0 to 10V, VDD = 20V, ID = 80A)
- 40V minimum drain-to-source breakdown voltage (ID = 250µA, VGS = 0V)
- 1µA maximum drain-to-source leakage current (TJ = 25°C, VDS = 40V, VGS = 0V)
- Gate-to-source leakage current is ±100nA (maximum, VGS = ±20V)
- Input capacitance is 3130pF (typical, VDS = 25V, VGS = 0V, f = 1MHz)
- Output capacitance is 756pF (typical, VDS = 25V, VGS = 0V, f = 1MHz)
- Gate resistance is 2ohm (f = 1MHz, TJ = 25°C)
- Source-to-drain diode voltage is 1.25V (max, ISD = 80A, VGS = 0V)
- D-PAK(TO-252) package, operating and storage temperature range from -55 to + 175°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 40V |
| Continuous Drain Current Id: 90A |
| Drain Source On State Resistance: 0.0023ohm |
| Transistor Case Style: TO-252 (DPAK) |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3.2V |
| Power Dissipation: 150W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 175°C |
| Product Range: PowerTrench |
| Qualification: AEC-Q101 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | FDD9409-F085 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
