Description
FAN251040 is a highly efficient synchronous buck regulator with digital interface, capable of operating with an input range from 4.5V to 18V and supporting up to 40A load currents. The FAN2510xx utilizes a fixed frequency voltage mode control architecture to provide a synchronized constant switching frequency while ensuring fast transient response. Switching frequency and overcurrent protection can be programmed to provide a flexible solution for various applications. Output overvoltage, undervoltage, overcurrent, and thermal shutdown protections help prevent damage to the device during fault conditions. Typical applications include server and desktop computers, notebooks, gaming, telecommunications and high density power solutions.
- PMBUS 1.3.1 compatible
- Accurate voltage, current and thermal telemetry reporting
- High efficiency over 96% peak
- Internal linear bias regulator
- Output voltage range from 0.5V to 5.5V
- Adjustable frequency range from 200KHz to1.4MHz
- Programmable soft-start, low shutdown current
- Internal boot diode
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| DC / DC Converter Type: - |
| Input Voltage Min: 4.5V |
| Input Voltage Max: 18V |
| No. of Outputs: 1 Output |

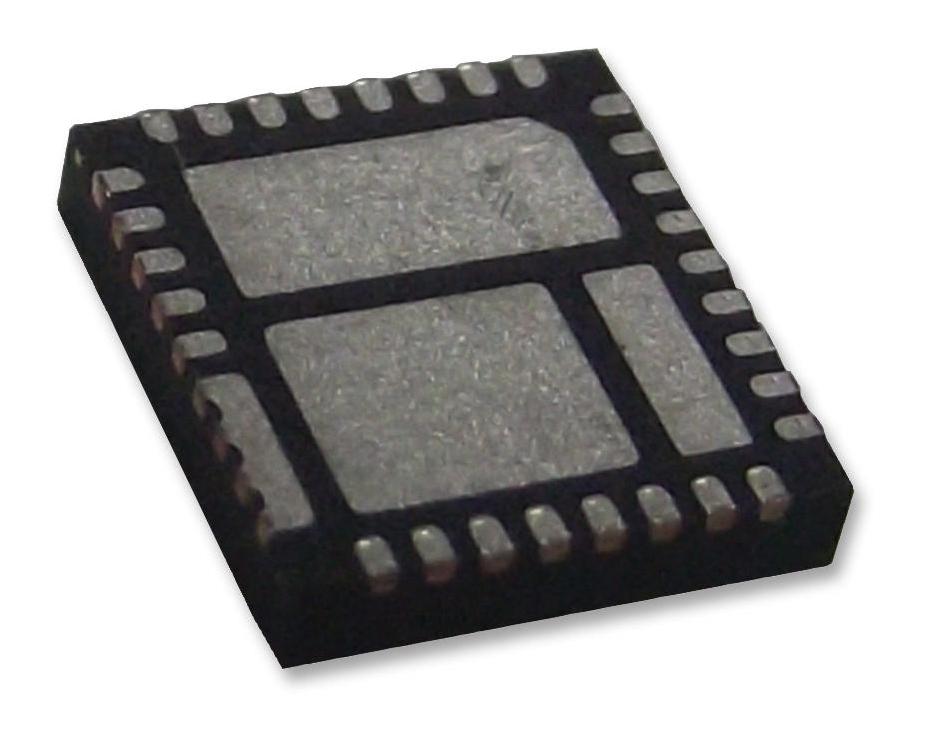

| DC / DC Converter IC Case: WQFN |
| No. of Pins: 34Pins |
| Output Current: 40A |
| Output Voltage Min: 500mV |
| Output Voltage Max: 5.5V |
| Switching Frequency: 1.4MHz |
| Topology: Synchronous Buck (Step Down) |
| Operating Temperature Max: 125°C |
| Product Range: - |
Other details
| Brand | ONSEMI |
| Part Number | FAN251040MNTXG |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
