Description

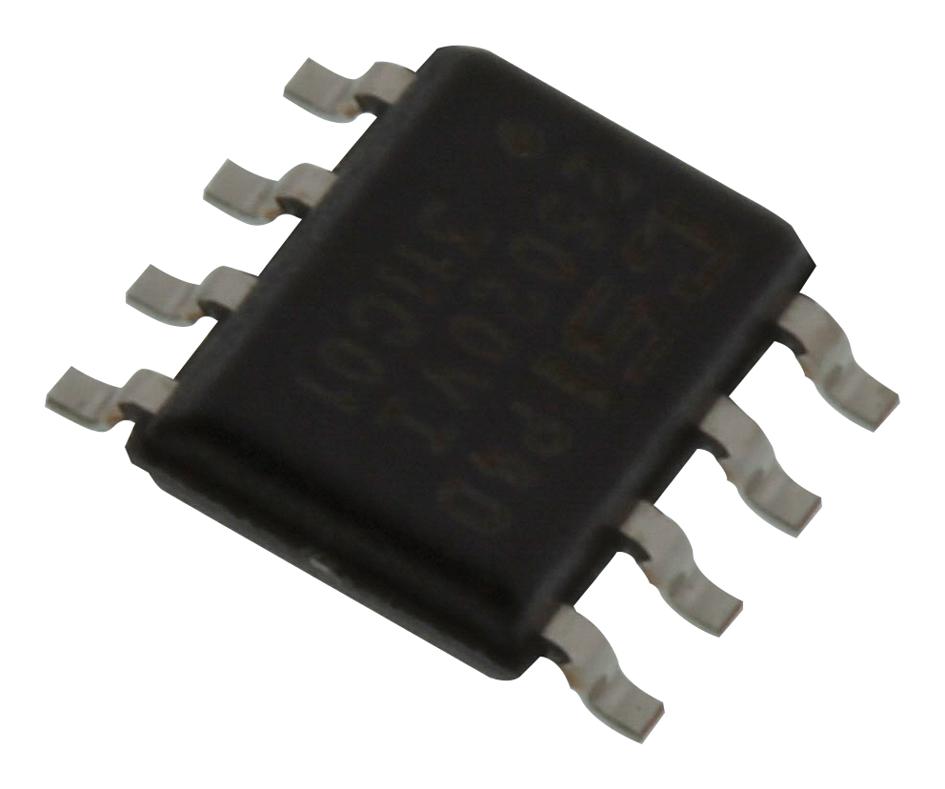

The CAT25020VI-GT3 is a 2kB serial CMOS Electrically Erasable Programmable Read-Only Memory (EEPROM) with 25020E-marking. It is internally organized as 128 x 8-bit. It features a 16-byte page write buffer and supports the serial peripheral interface (SPI) protocol. The device is enabled through a chip select (CS) input. In addition, the required bus signals are a clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25010 device. This device features software and hardware write protection, including partial as well as full array protection.
- 1.8 to 5.5V Supply voltage range
- Self-timed write cycle
- Hardware and software protection
- Block write protection - Protect 1/4, 1/2 or entire EEPROM array
- Low power CMOS technology
- 1000000 Program/erase cycles
- 100 years Data retention
- Industrial and extended temperature range
Applications
Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Memory Density: 2Kbit |
| Memory Configuration: 256 x 8bit |
| Interfaces: Serial SPI |
| Clock Frequency Max: 5MHz |
| IC Case / Package: SOIC |
| No. of Pins: 8Pins |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 5.5V |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: 2Kbit SPI Serial EEPROM |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | CAT25020VI-GT3 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
