Description

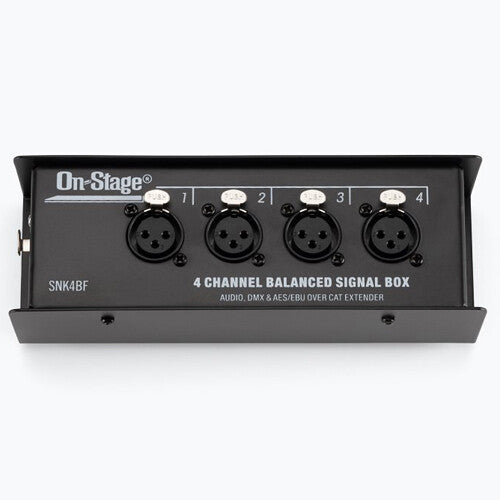

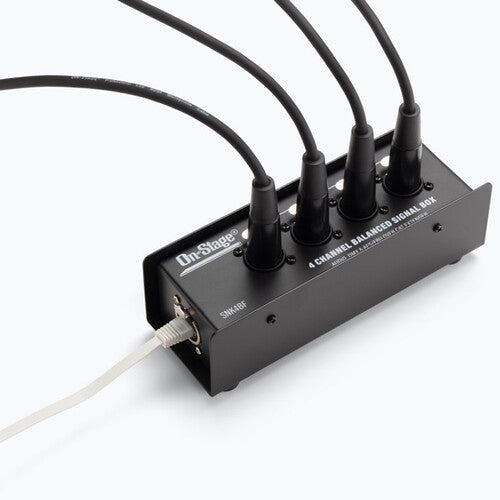

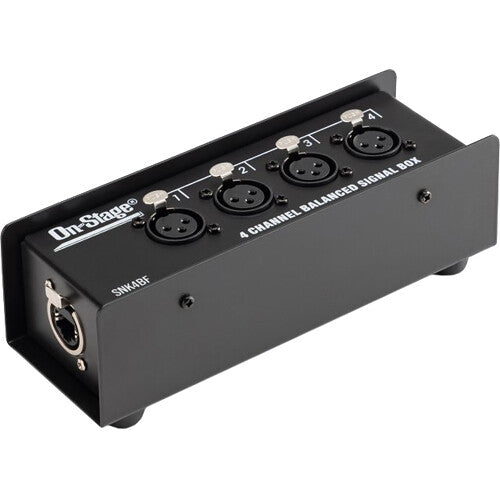

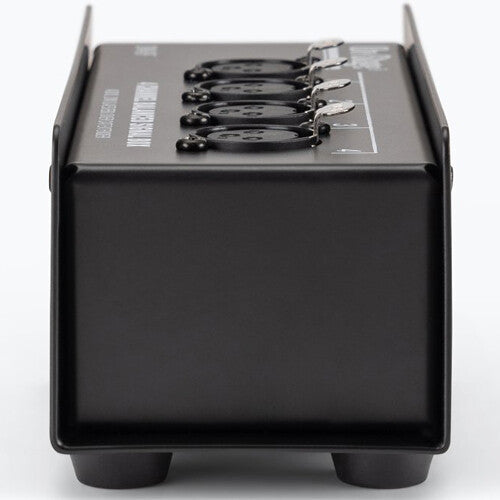

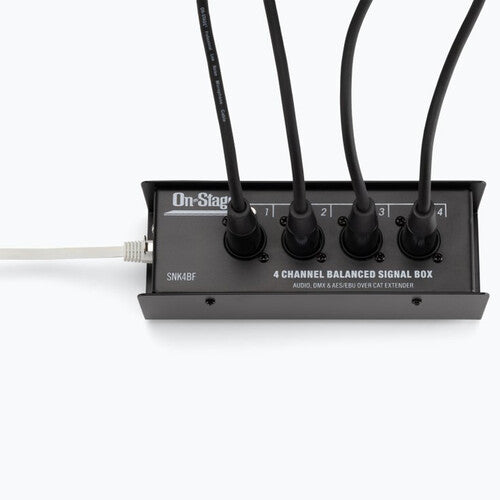

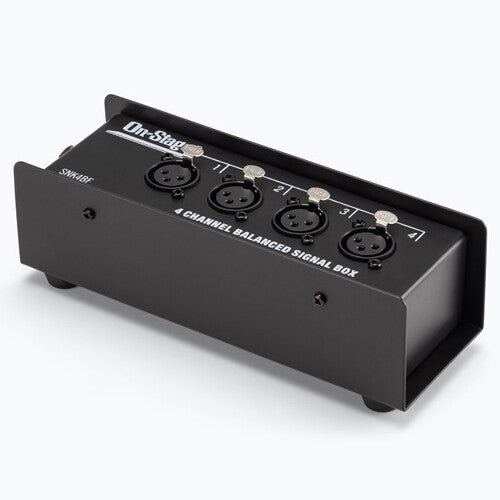

On-Stage OSPRO-SNK4BF Overview
The On-Stage SNK4BF Production-Grade Female Snake Signal Box is a simple converter box that supports analog and digital AES/EBU audio as well as supporting DMX protocols to control lighting and stage effects. This device routes signals in either direction, and it will even pass phantom power for use with analog mics. It features a passive circuit, flat frequency response, low THD, and low noise floor for clear, high-quality audio transmission that does not require additional power. The rugged metal enclosure provides protection for the internal components to stand up to the rigors of the production environment.
- Consolidates four of your XLR connections into one Ethernet cable
- Enables you to route signals in either direction
- Supports your balanced-analog signals as well as digital protocols, including AES/EBU and DMX
- Reduces the number of cables you need for lighting, microphones, instruments, speakers, or other audio
- Provides you with clear, low-noise, high-quality audio transfer
- Conveniently passes phantom power
- Accepts a shielded Cat 5, 5E, 6, 6A, or 7 cable to block interference
- Easy to store and transport
- On-Stage SNK4BF Production-Grade Female Snake Signal Box
No additional resources available
On-Stage OSPRO-SNK4BF Specs
| Signal Type |
Analog and Digital
|
| Connector 1 |
4x XLR 3-Pin Female
|
| Connector 2 |

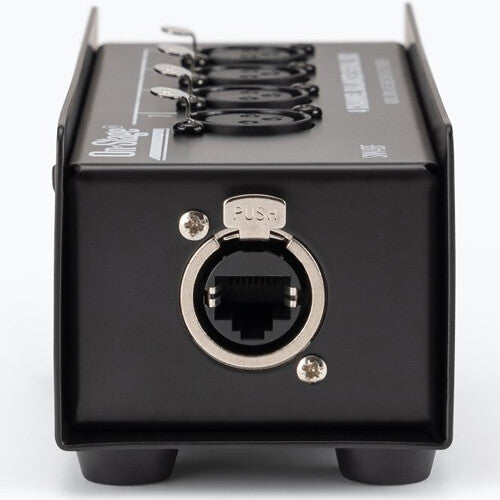

1x etherCON
|
| Number of Channels |
4
|
| Shielded |
No
|
| Field-Serviceable Connectors |
No: Molded
|
| Dimensions |
8.2 x 3.4 x 2.7" / 20.8 x 8.6 x 6.9 cm
|
| Weight |
1.1 lb / 0.5 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12259.8 |
| 3-5 | ₹ 12134.7 |
| 5-10 | ₹ 11884.5 |
| 10+ | ₹ 11634.3 |
Bulk discount will be automatically applied during checkout based on quantity.
