Description

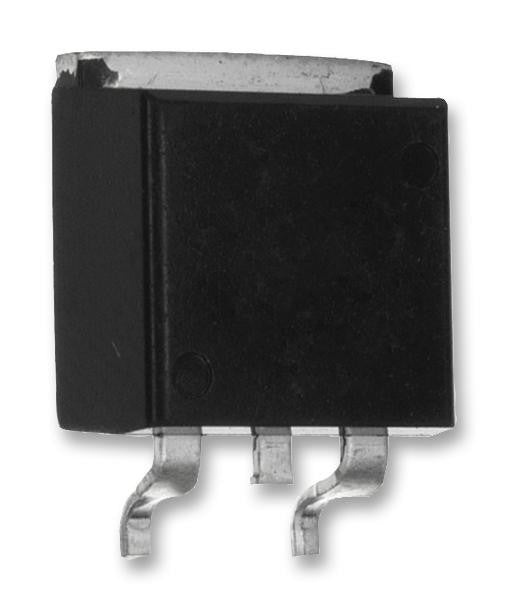

This is a Fixed LDO Voltage Regulator, 4.75V to 20V, 1.07V Dropout, 3.3Vout, 1.5Aout, TO-252-3 product from ON SEMICONDUCTOR with the model number NCV1117DT33T5G
Product details
| Output Type | Fixed |
| Input Voltage Min | 4.75V |
| Input Voltage Max | 20V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 1.5A |
| Dropout Voltage Vdo | 1.07V |
| LDO Regulator Case Style | TO-252 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Packaging | Each |
| Product Range | 3.3V 1.5A LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | NCV1117DT33T5G |
| Quantity | Each |
| Technical Data Sheet EN |  |
