Description

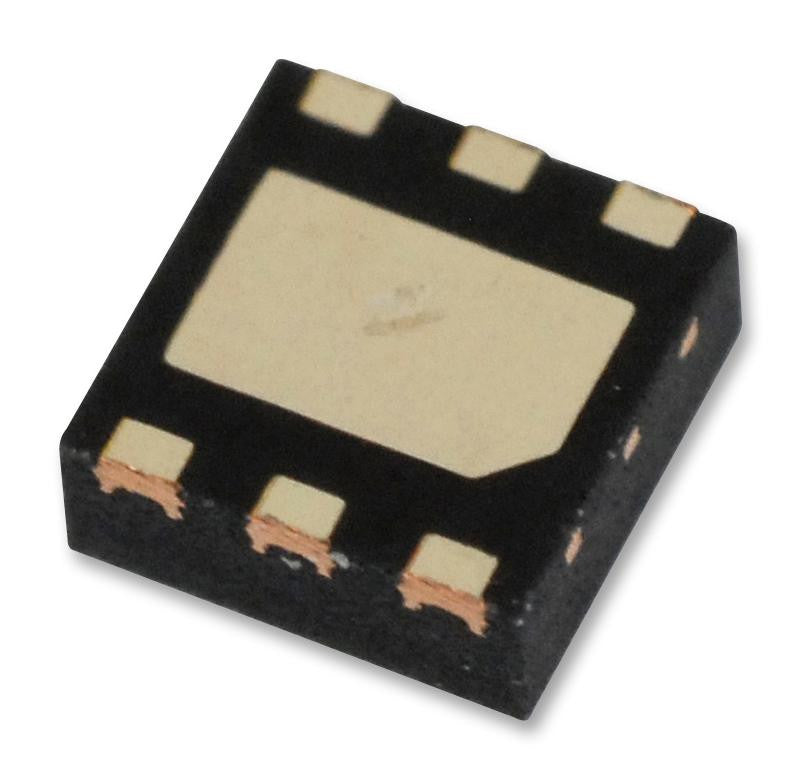

This is a Fixed LDO Voltage Regulator, 2.5V to 5.5V, 230mV Dropout, 2.8Vout, 500mAout, WDFN-6 product from ON SEMICONDUCTOR with the model number NCP705MT28TCG
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.5V |
| Input Voltage Max | 5.5V |
| Fixed Output Voltage Nom. | 2.8V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 500mA |
| Dropout Voltage Vdo | 230mV |
| LDO Regulator Case Style | WDFN |
| No. of Pins | 6Pins |
| Operating Temperature Min | - |
| Operating Temperature Max | 150°C |
| Packaging | Cut Tape |
| Product Range | 2.8V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | NCP705MT28TCG |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
