Description
The MC78M05CTG is a Positive Voltage Regulator identical to the popular MC7800 series devices, except it is specified for only half the output current. The MC78M00 three-terminal regulator is intended for local, on-card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these linear voltage regulator remarkably rugged under most operating conditions. Maximum output current, with adequate heat sinking is 500mA.
- No external components required
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe-area compensation
- 40µV Output noise voltage
- 2VDC Dropout voltage (TJ=+25°C)
- 700mA Peak output current (TJ=+25°C)
Applications
Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Input Voltage Max | 35V |
| Linear Regulator Case Style | TO-220 |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | 0°C |
| Output Current | 500mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 10V |
| Product Range | 7805 Voltage Regulators |
| Automotive Qualification Standard | - |
| Packaging | Each |
| MSL | - |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | MC78M05CTG |
| Quantity | Each |
| Technical Data Sheet EN |  |

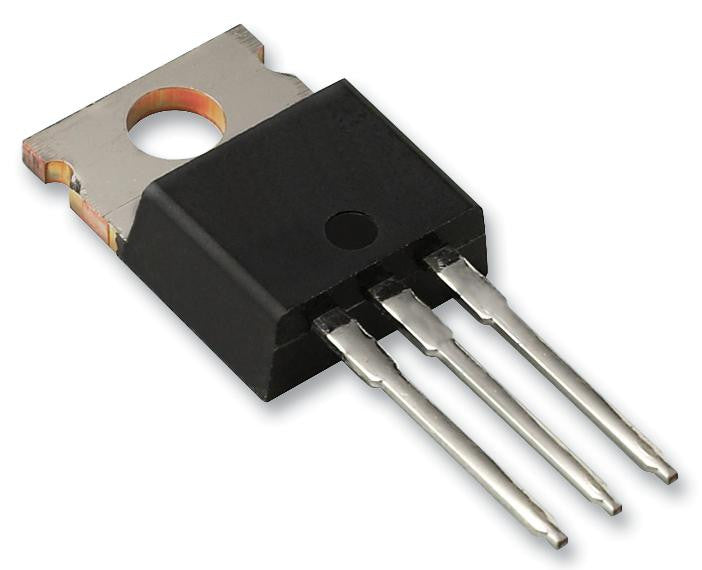

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
