Description

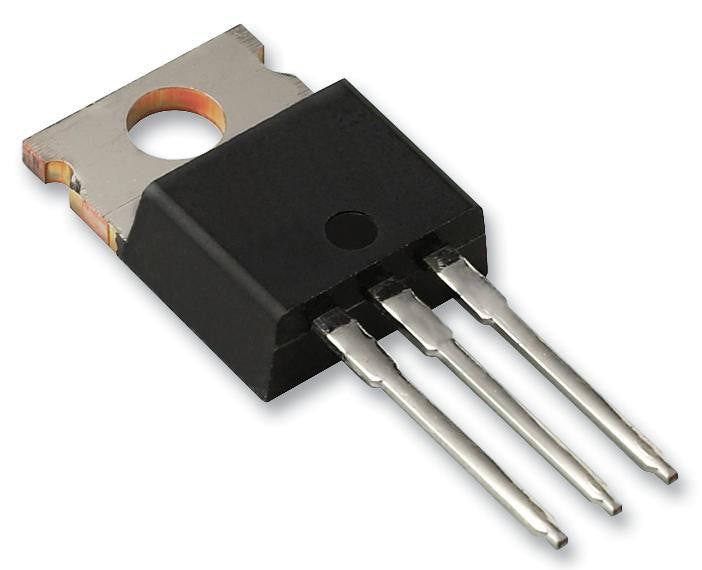

The MC7805ACTG is a fixed output positive linear voltage regulator in 3 pin TO-220 package. This monolithic integrated circuit is designed as fixed voltage regulator for a wide variety of applications including local and oncard regulation. This regulator employs internal current limiting, thermal shutdown and safe area compensation.
- Fixed output voltage of 5V
- 1A output current
- Dropout voltage of 2V at 1A output current
- Maximum input voltage of 35V
- No external components required
- Output voltage offered in 1.5%, 2% and 4% tolerance
- Operating temperature range from 0°C to 125°C
Applications
Power Management
Product details
| Input Voltage Max | 35V |
| Linear Regulator Case Style | TO-220 |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | 0°C |
| Output Current | 1A |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 10V |
| Product Range | 7805 Voltage Regulators |
| Automotive Qualification Standard | - |
| Packaging | Each |
| MSL | - |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | MC7805ACTG |
| Quantity | Each |
| Technical Data Sheet EN |  |
