Description

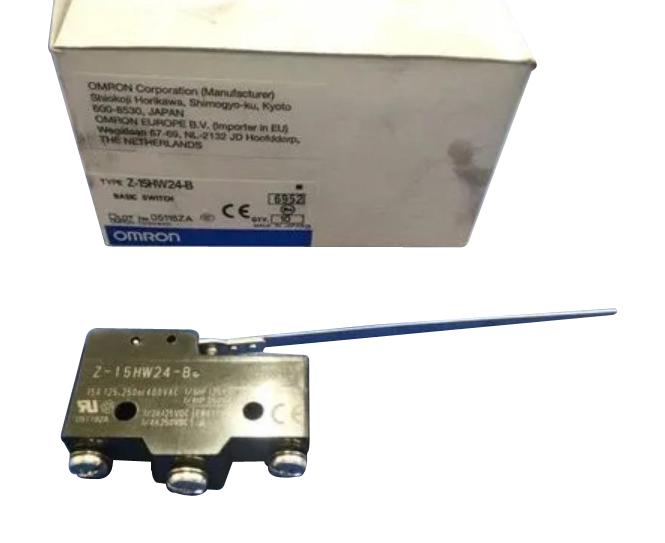

The Z-15HW24-B is a single-pole double-throw (SPDT) general-purpose Basic Switch with screw terminals, a low-force hinge lever actuator and 0.25mm (high-sensitivity, micro load) contact gap. The basic switch boasting high precision and wide variety. A large switching capacity of 15A with high repeat accuracy. A series of molded terminal-type models incorporating safety terminal protective cover is available.
- 100MR at 500VDC Minimum insulation resistance
- 15mR Maximum contact resistance
- IP00 Protection rating
- -25 to +80°C Operating temperature range
Applications
Industrial
Product details
| Microswitch Type: Standard |
| Microswitch Actuator: Hinge Lever |
| Contact Configuration: SPDT |
| Switch Terminals: Screw |
| Contact Current Max: 15A |
| Contact Voltage DC Nom: 14VDC |
| Product Range: Z |
| Contact Voltage AC Nom: 250VAC |
| Operating Force Max: 0.0588N |
Other details
| Brand | OMRON |
| Part Number | Z-15HW24-B |
| Quantity | Each |
| Technical Data Sheet EN |  |
