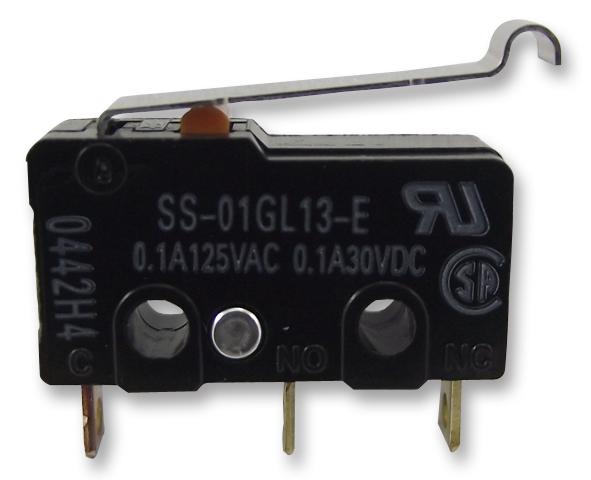

The SS-01GL13-E is a SPDT subminiature Basic Switch with simulated roller lever actuator and solder terminals. It offers high reliability and security.
- Gold-plated alloy crossbar contact
- 0.25mm Gap (standard value)
- 85°C Standard heat resistance
- 100MR at 500VDC Minimum insulation resistance
- IP40 Protection rating
Applications
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Microswitch Type |
Subminiature |
| Microswitch Actuator |
Simulated Roller Lever |

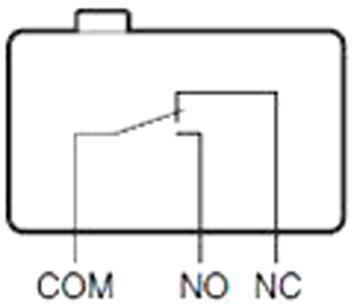

| Contact Configuration |
SPDT |
| Switch Terminals |
Solder |
| Contact Current Max |
100mA |
| Contact Voltage DC Nom |
30VDC |
| Product Range |
- |
| Contact Voltage AC Nom |
125VAC |
| Operating Force Max |
0.25N |
Other details
| Brand |
OMRON |
| Part Number |
SS-01GL13-E |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
