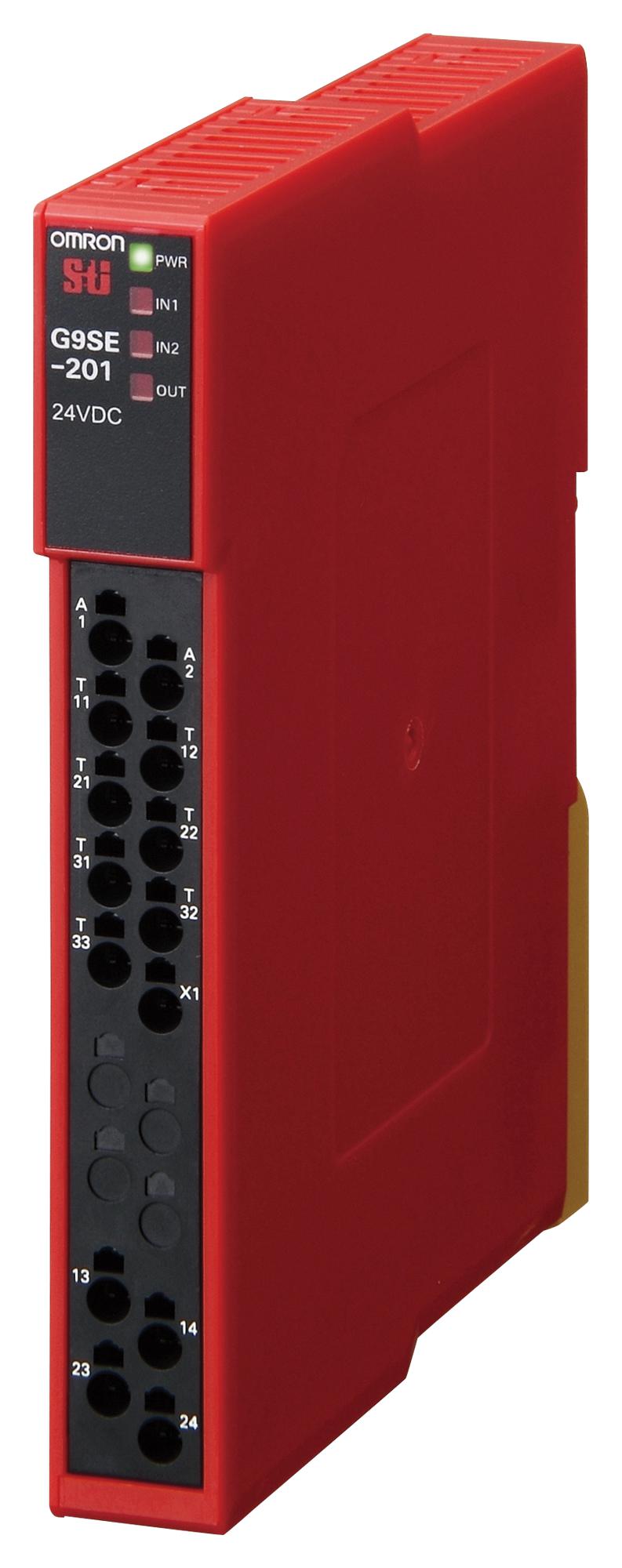

G9SE201 is a safety relay. It is a compact and easy-to-install unit with safety outputs helps increase your productivity, from installation to maintenance. The G9SE saves mounting space, lowers installation cost with push-in plus terminal block, and reduces operational cost with intuitive diagnostic indicators.
- 17.5 or 22.5 mm width to save mounting space
- Easy maintenance with status indicators
- Rated voltage is 24VDC
- 3W maximum power consumption
- DPST-NO safety output configuration (instantaneous outputs)
- PNP auxiliary output
Product details
| Coil Voltage:
24VDC
|
| Contact Configuration:
DPST-NO
|
| Product Range:
G9SE
|
| Relay Mounting:
DIN Rail
|
| Contact Current:
5A
|
| Relay Terminals:
Screw
|
| Contact Voltage AC Nom:
250V
|
| Contact Voltage DC Nom:
30V
|
| Contact Material:
-
|
| IP Rating:
IP20
|
Other details
| Brand |
OMRON INDUSTRIAL AUTOMATION |
| Part Number |
G9SE201 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
