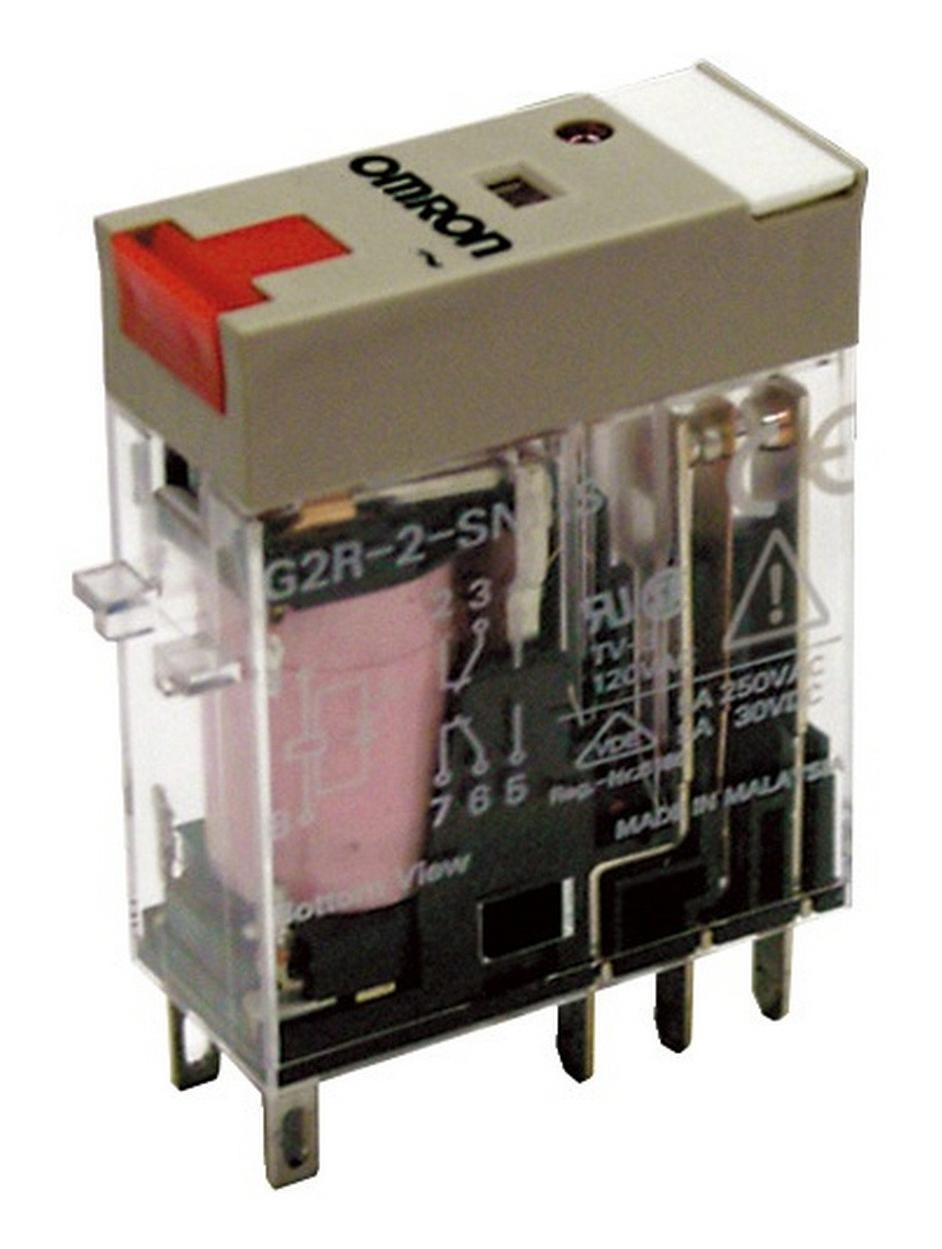

G2R-S(S) series slim and space-saving power relay. It reduces wiring work by 60% when combined with the P2RF-PU push-in plus socket. AC type is equipped with a coil-disconnection self-diagnostic function (LED type).
- Mechanical operation indicator and nameplate
- Contact form is DPDT
- Number of poles are 2
- Plug-in terminals, transparent case, silver tin indium alloy (AgSnIn) contact
- LED indicator with test button
- Voltage rating of 120VAC, current rating of 8.6mA (50Hz), 7.5mA (60Hz)
- Rated carry current is 5A
- Maximum operating frequency is 18000 operations/hour (mechanical), 1800 operations/hour (electrical)
- Operating ambient temperature range from -40°C to 70°C
Other details
| Brand |
OMRON INDUSTRIAL AUTOMATION |
| Part Number |
G2R-2-SNI AC120(S) |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
