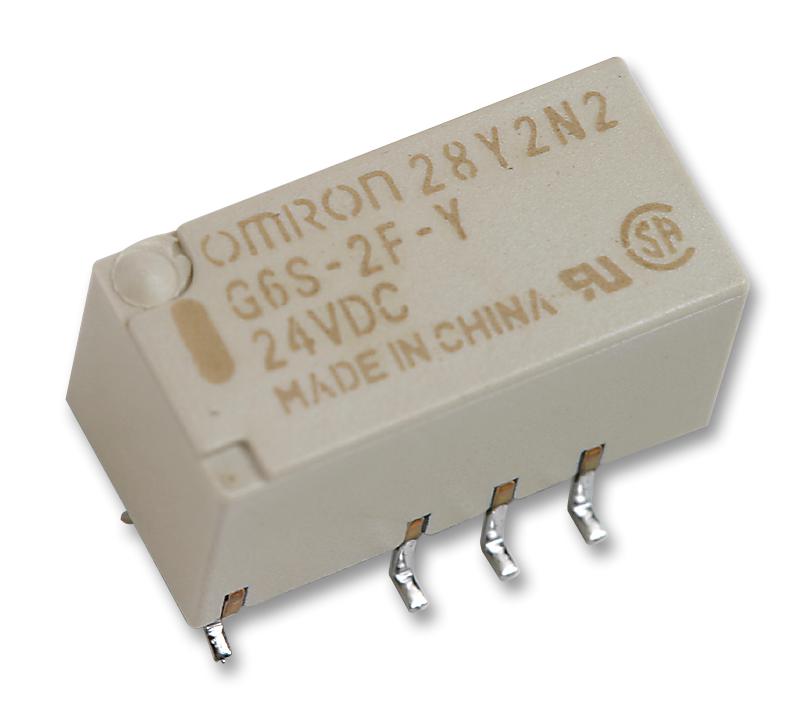

The G6S series surface-mount Low Signal Relay with DPDT contacts. The high dielectric withstand voltage of 2000VAC between coil and contacts (standard type), 1500VAC between contacts of different polarity. The European version certified for EN60950/EN41003 supplementary insulation at 250V at pollution degree-2.
- Available in through-hole and SMT terminals
- Low power consumption of 140mW (non-latching)
- Meets FCC part 68 and Telcordia 2.5kV surge withstand
Applications
Industrial, Signal Processing
Product details
| Coil Voltage |
12VDC |
| Contact Configuration |
DPDT |
| Contact Current |
2A |
| Product Range |
G6S Series |
| Relay Mounting |
SMD |
| Coil Type |
Non Latching |
| Relay Terminals |
Solder |
| Contact Voltage VAC |
- |
| Contact Voltage VDC |
30V |
| Contact Material |
Silver Gold |
| Coil Resistance |
720ohm |
Other details
| Brand |
OMRON |
| Part Number |
G6S-2FY 12DC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
