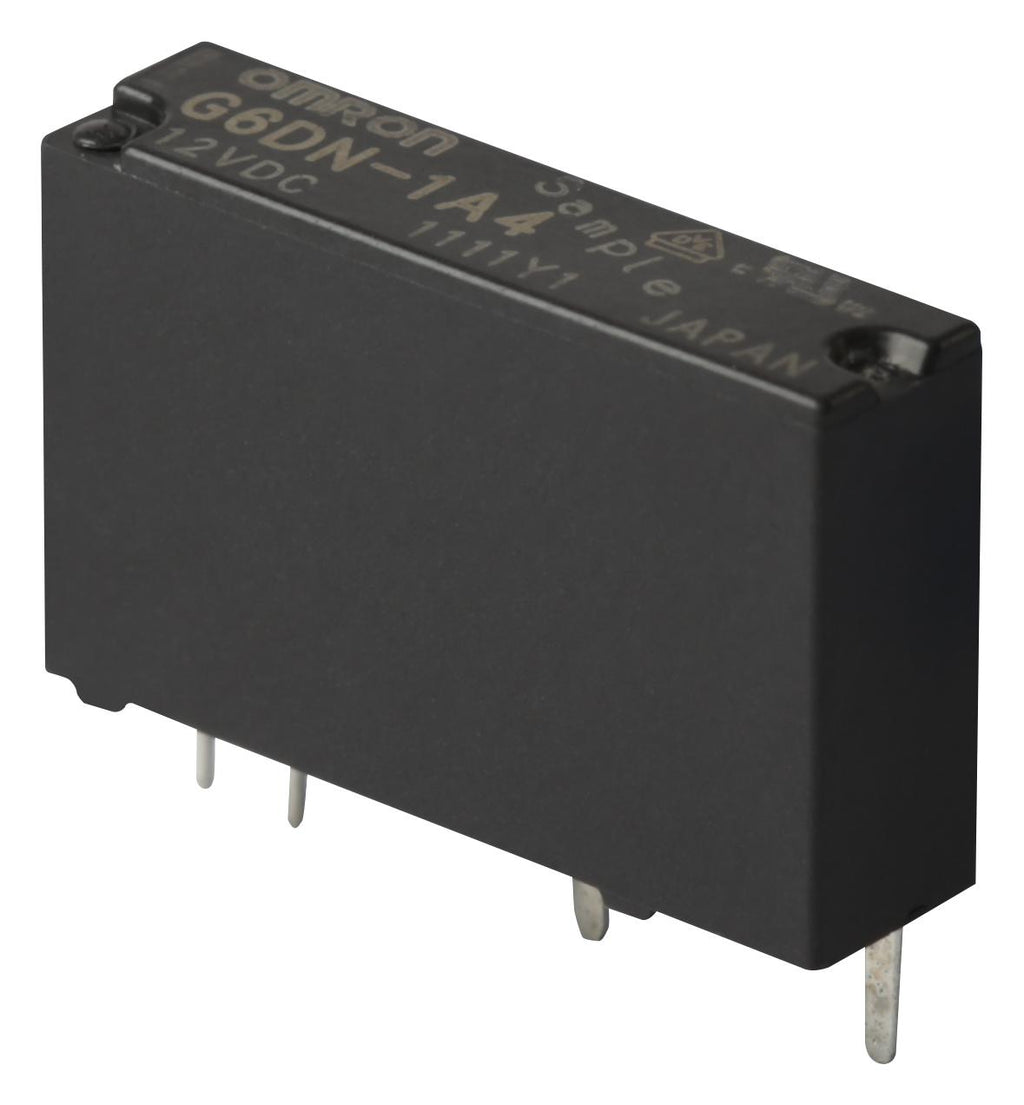

Omron's new G6DN relay is not only the smallest design of its specification on the market, but also offers the lowest coil power consumption. This makes it extremely efficient, as it requires only a minimal amount of energy to switch the relay. Its width is 5mm, making it ideal for high density mounting. Customers are under continuous pressure to reduce the size and power consumption of the systems that they create, and the G6DN is exactly the kind of space saving, energy saving solution they are looking for. The performance and high reliability of the G6DN has been achieved with a cross bar twin contact architecture and silver nickel and gold plated contacts. The most sensitive areas of the relay are fully sealed, to protect against plastic dust particles. The G6DN meets EN61010-1, EN61010-2-201 for reinforced insulation and EN60335-1 for basic insulation. It can withstand surges of up to 6kV.
- Smallest width in the market
- Lowest coil consumption
- High reliability contacts with Crossbar Twin & Au plating
- High power switching with Electrical Endurance : 80Kops @ 5A (30VDC , 250VAC)
Applications
Industrial
Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Product details
| Contact Configuration |
SPST-NO |
| Coil Voltage |
12VDC |
| Contact Current |
5A |
| Product Range |
G6DN Series |
| Relay Mounting |
Through Hole |
| Coil Type |
- |
| Contact Voltage VAC |
250V |
| Relay Terminals |
Solder |
| Contact Voltage VDC |
30V |
| Contact Material |
Silver Alloy |
| Coil Resistance |
1.309kohm |
| Approvals & Standards |
UL, VDE |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
OMRON |
| Part Number |
G6DN-1A DC12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
