The G5RL-K series General-purpose Latching Relay with creepage distance 8mm between coil and contacts. it offers 16A high switching current and it is suitable for TV-8 rating (SPST-NO (1A)).
- 10kV Impulse withstand voltage
- 85?C Operating temperature
Applications
Industrial, Automation & Process Control, Power Management, Metering
Product details
| Contact Configuration |
SPDT |
| Coil Voltage |
24VDC |
| Contact Current |
16A |
| Product Range |
G5RL-K Series |
| Relay Mounting |
Through Hole |
| Coil Type |
Latching Dual Coil |
| Contact Voltage VAC |
250VAC |
| Relay Terminals |
Solder |
| Contact Voltage VDC |
24VDC |
| Contact Material |
Silver Alloy |
| Coil Resistance |
960ohm |
Other details
| Brand |
OMRON |
| Part Number |
G5RLK1EDC24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

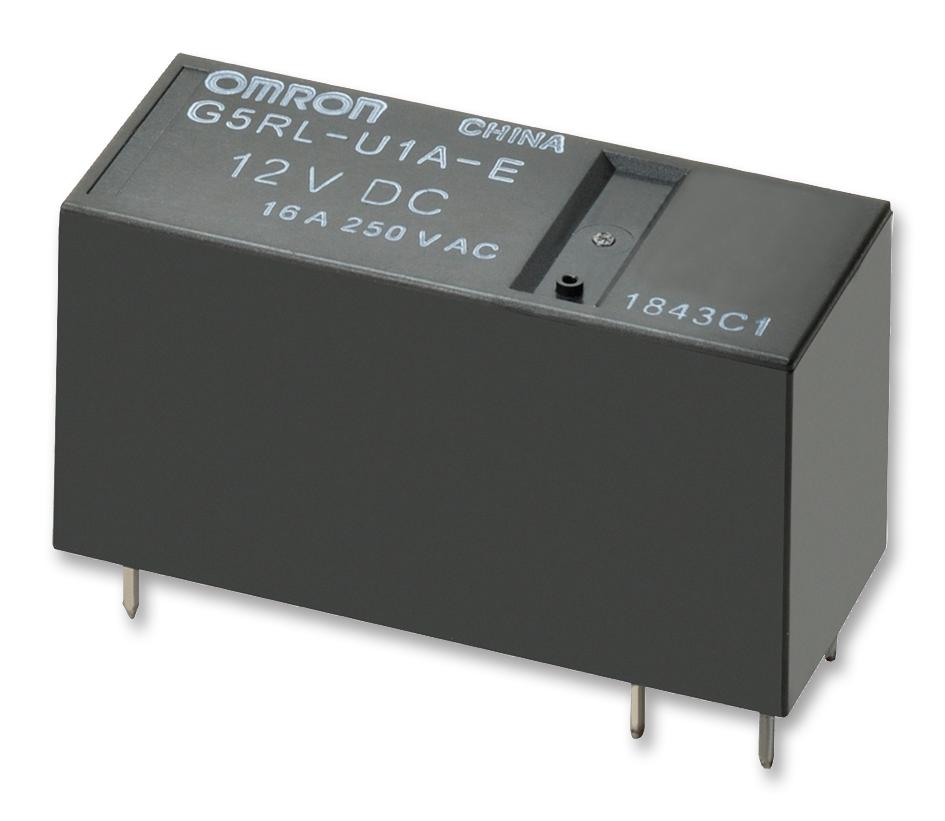

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
