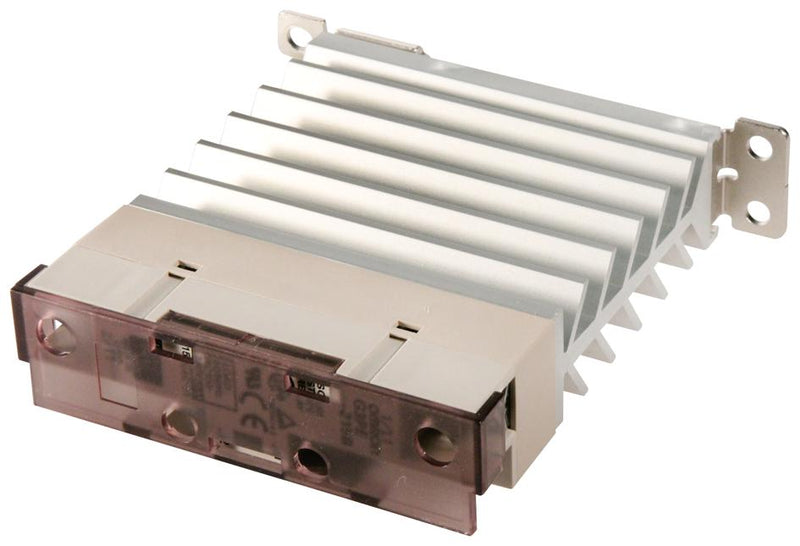

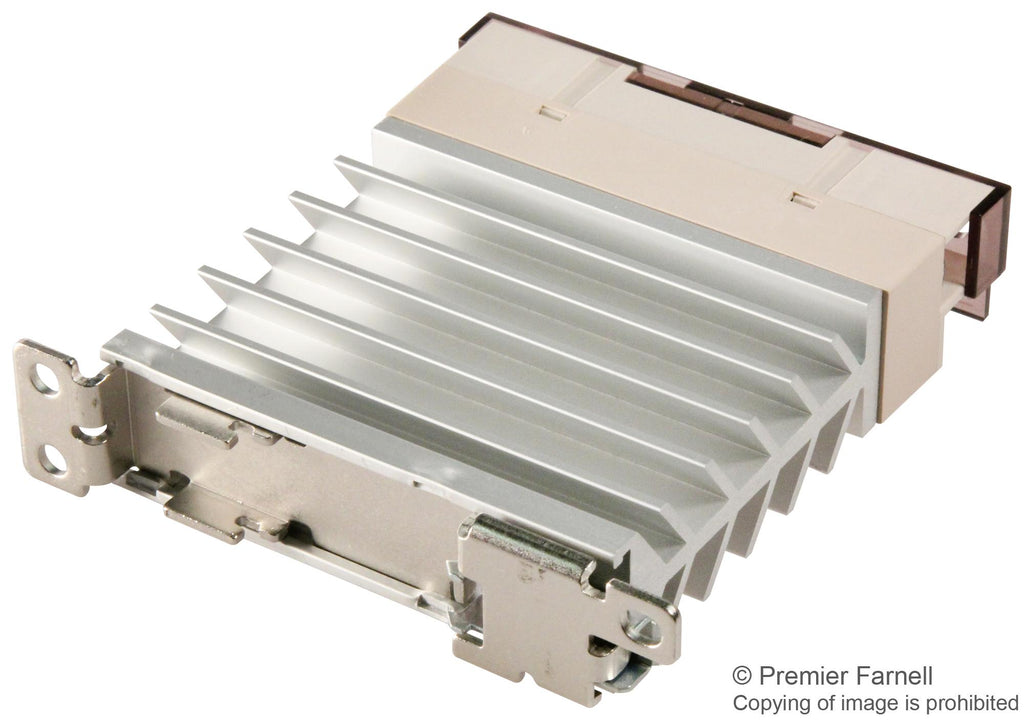

The G3PE-215B DC12-24 is a 1-phase Solid-state Relay for heaters, G3PE series. Slim width industrial SSR with heat sink ideal for heater control. Single-phase models have attached heat sink allowing for quick easy track mount installation. Zero cross or random turn on models.
- Phototriac coupler insulation
- Snubber circuit provides excellent short-term surge absorption
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Configuration |
- |
| Load Current |
15A |
| Operating Voltage Max |
30VDC |
| Relay Mounting |
DIN Rail |
| Relay Terminals |
Screw |
| Switching Mode |
Zero Crossing |
| Operating Voltage Min |
9.6VDC |
| Control Voltage Min |
75VAC |
| Control Voltage Max |
264VAC |
| Product Range |
- |
Other details
| Brand |
OMRON |
| Part Number |
G3PE-215B DC12-24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
