Description

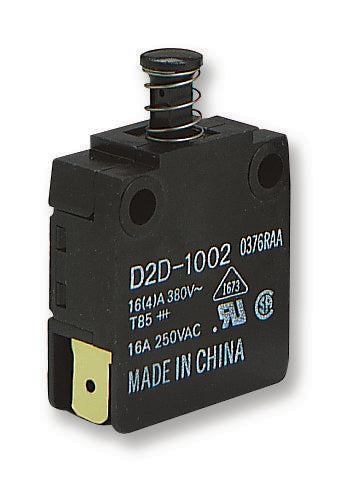

The D2D series Door Interlock Power Switch offers minimum contact gap of 3mm required for power switches as standard equipment. Highly reliable design conforms to European safety standards. Safety considerations include a double return spring and direct drive positive contact opening feature. Also conforms to Class II of VDE Insulation. Pull-on lock model for easy maintenance is also available.
- 10mm to 1m/s Operating speed
- 300 Operations/minute maximum mechanical operating frequency
- 30 Operations/minute maximum electrical operating frequency
- 100MR at 500VDC Minimum insulation resistance
- 50mR Maximum contact resistance
- IP40 Protection rating
- Class II Degree of protection against electric shock
- -25 to 85°C Ambient operating temperature
Industrial, Safety
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | D2D-1002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
