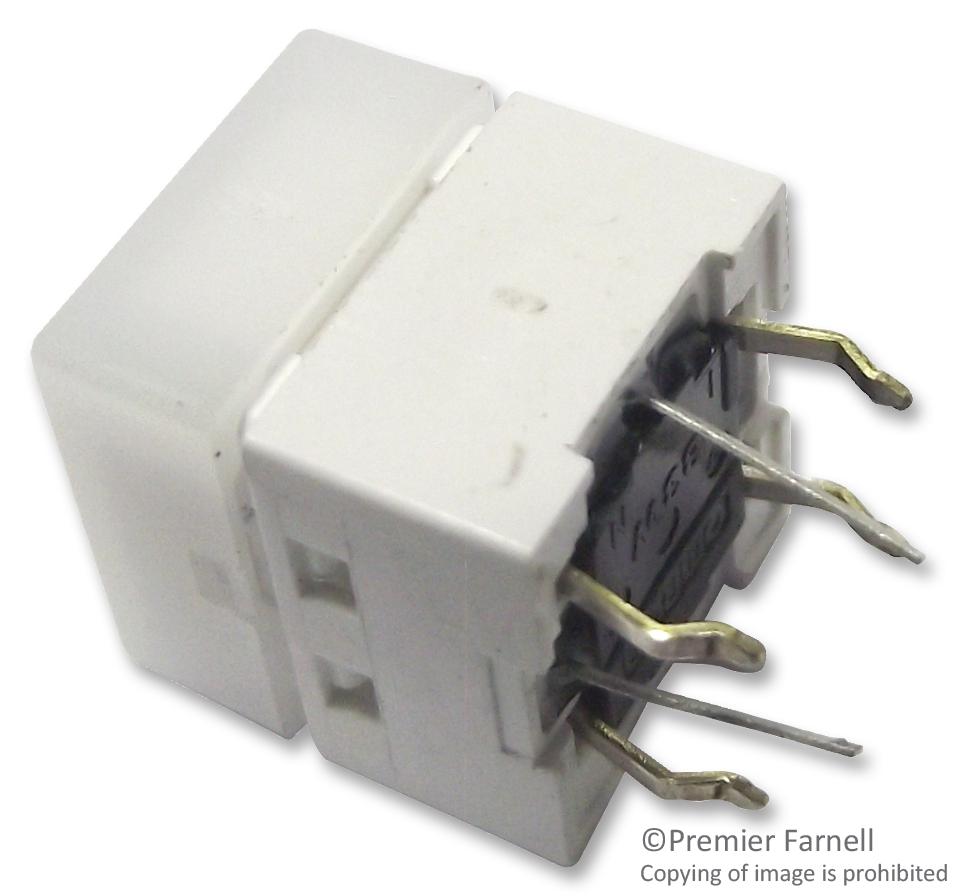

The B3W-9000-G1N is a single-pole single-throw (SPST) momentary Tactile Switch with silver-plated contacts, green LED and milky white cap. The compact illuminated through-hole-mounting tactile switch features bright and uniform illumination, high contact reliability and snap-action contact construction for a positive click action.
- 100mR Maximum contact resistance
- 100MR Minimum insulation resistance
- 500VAC at 50/60Hz for 1 minute Dielectric strength
- -25 to +70?C Operating temperature range
Applications
Industrial
Product details
| Product Range |
B3W-9 Series |
| Actuator Orientation |
Top Actuated |
| Switch Mounting |
Through Hole |
| Actuator Style |
Square Button |
| Actuating Force |
160gf |
| Contact Rating |
50mA at 24VDC |
| Switch Dimensions (L x W) |
10mm x 10mm |
| IP Rating |
IP00 |
| Illumination |
Illuminated |
Other details
| Brand |
OMRON |
| Part Number |
B3W-9000-G1N |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
