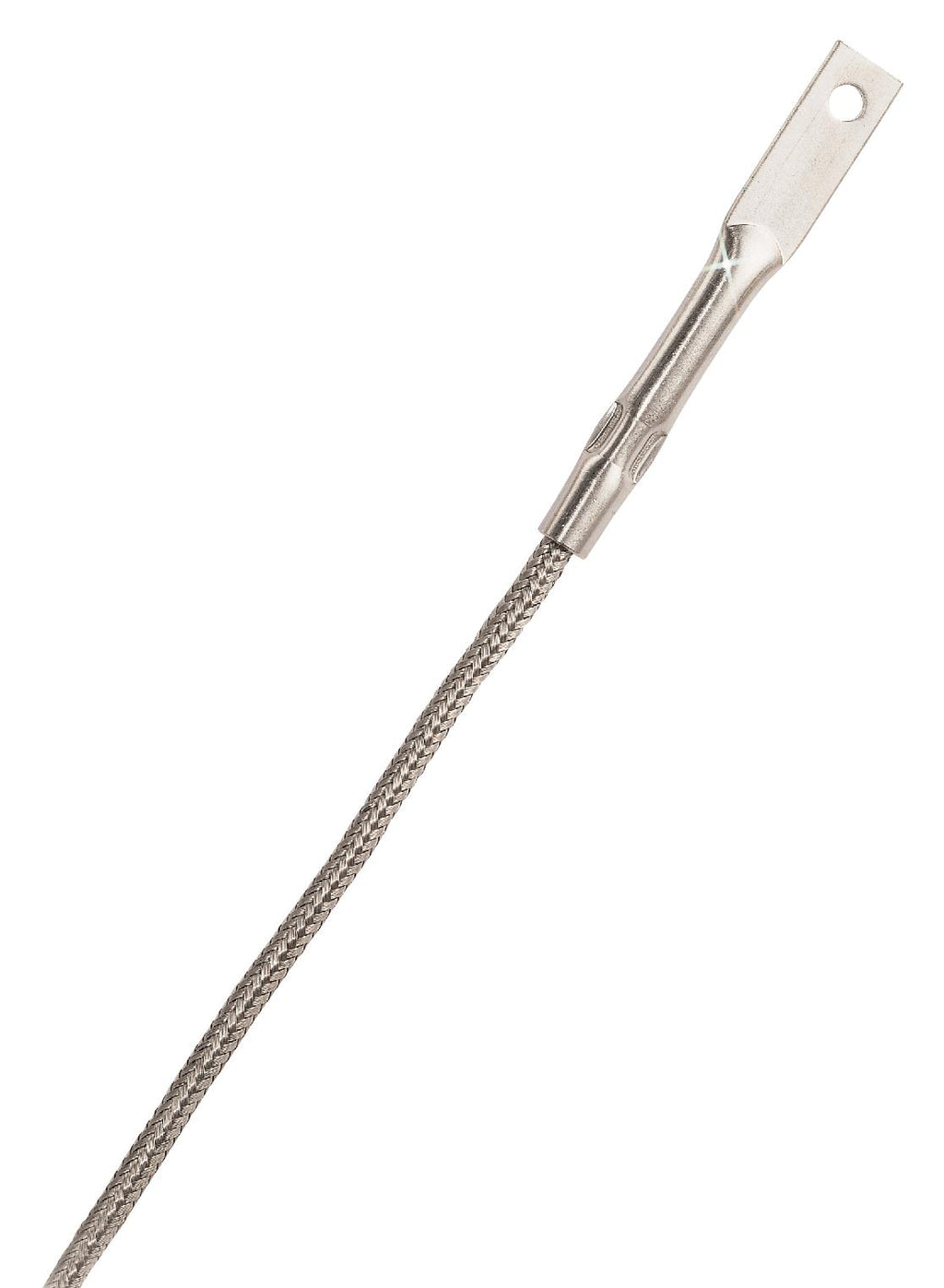

XCIB series K type high temperature and abrasion resistant thermocouple is double-protected with abrasion-resistant Inconel overbraid with high temperature ceramic fibre insulation. This is unexcelled for profiling ovens and furnaces. The 20-gauge solid conductor thermocouple wires are insulated with braided Nextel® ceramic over the ceramic fibre is a rugged overbraid of Inconel 600® -a tough, high-temperature, high nickel content alloy.
- Flexible, abrasion resistant
- Unexcelled oven and furnace profiling
- Bolt-on thermocouple junction
- Nextel covered leads with striped end
- 3048mm length
- Wire gauge is 20 gauge solid standard limits of error
- Continuous temperature rating is 980°C
Other details
| Brand |
OMEGA |
| Part Number |
XCIB-K-4-5-10 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
