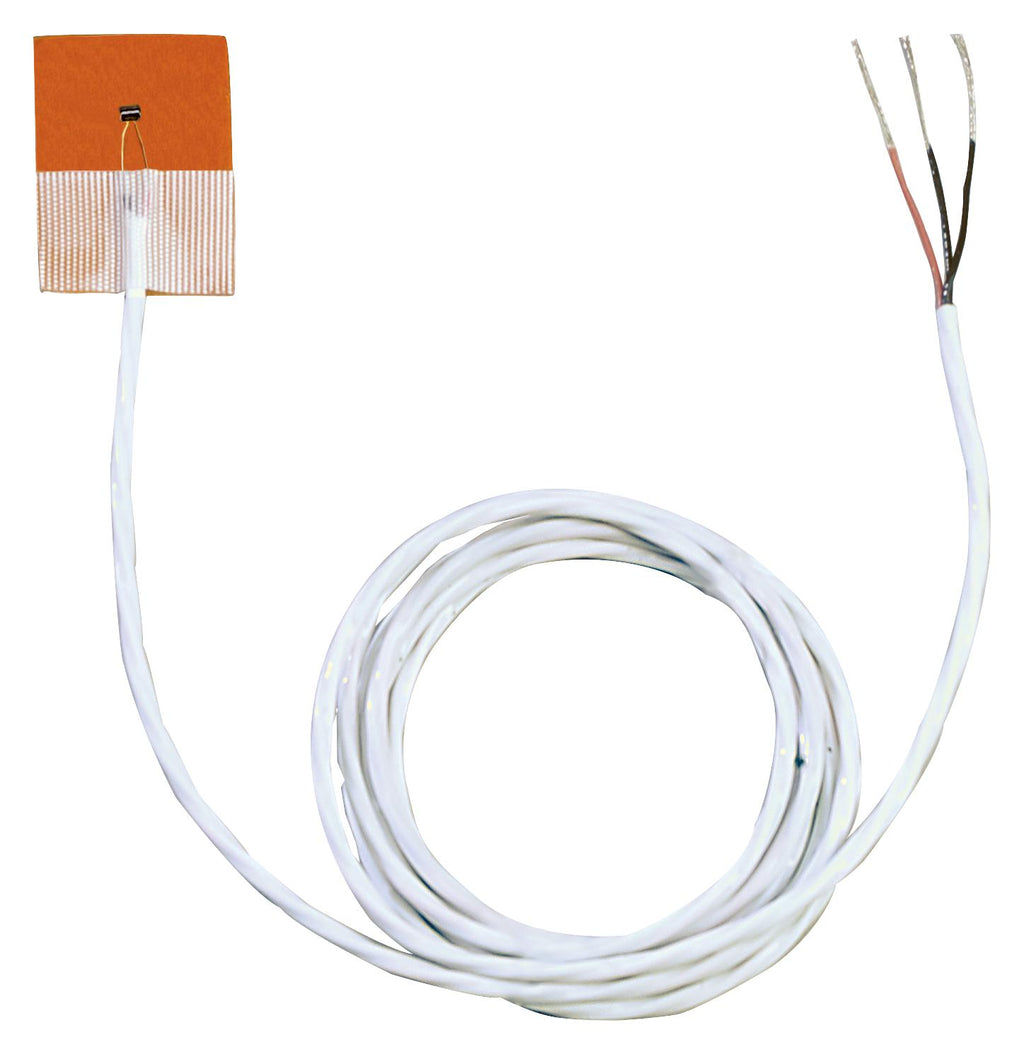

SA1-RTD surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. The sensor can be easily applied using its self-adhesive backing, or permanently mounted using OMEGABOND® cements.
- 100 ohm DIN Class A (±0.06 ohm or ±0.15°C at 0°C) accuracy standard
- Easy-installation silicone-based, self-adhesive backing rated to 260°C (500°F)
- Sensor can be reapplied
- 290°C (554°F) short-term operation when used as a "cement-on"
- 4-wire Pt100
- 3m length
Other details
| Brand |
OMEGA |
| Part Number |
SA1-RTD-4W-120 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
