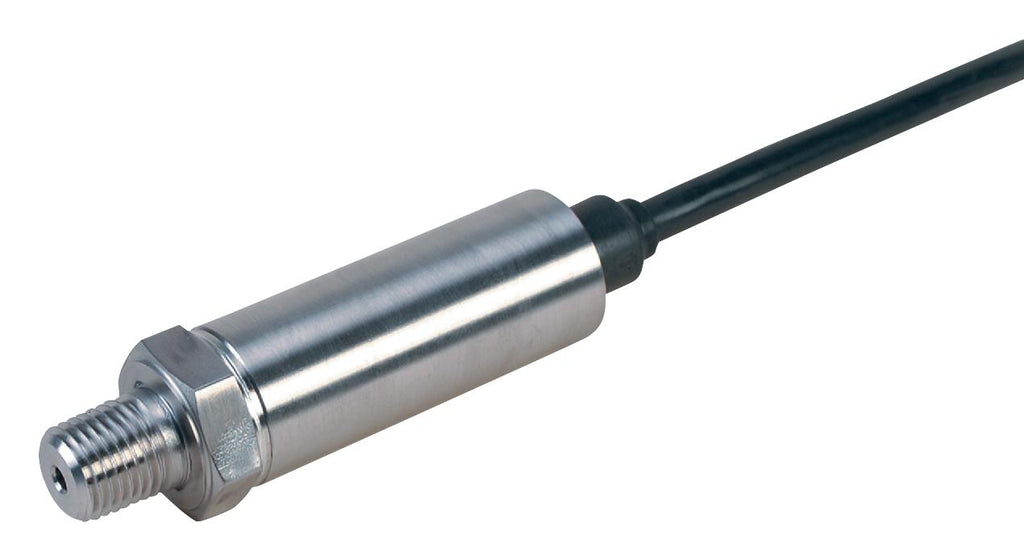

- Configurable, high accuracy pressure transducer
- 0 to 2500psi gauge pressure, 1/4" NPT male, cable, (-49 to 240°F)
- Fast response time
- High accuracy ±0.08% BSL includes linearity, hysteresis and repeatability
- Premium temperature performance span: ±0.5% over compensated range
- 5-point NIST-traceable calibration
- Voltage output signal, 0 to 5VDC output
- Solid state reliability and stability
- 300% proof pressure minimum
- 172bar range and 2m (6') cable termination
Other details
| Brand |
OMEGA |
| Part Number |
PX409-2.5KG5V |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
