Description

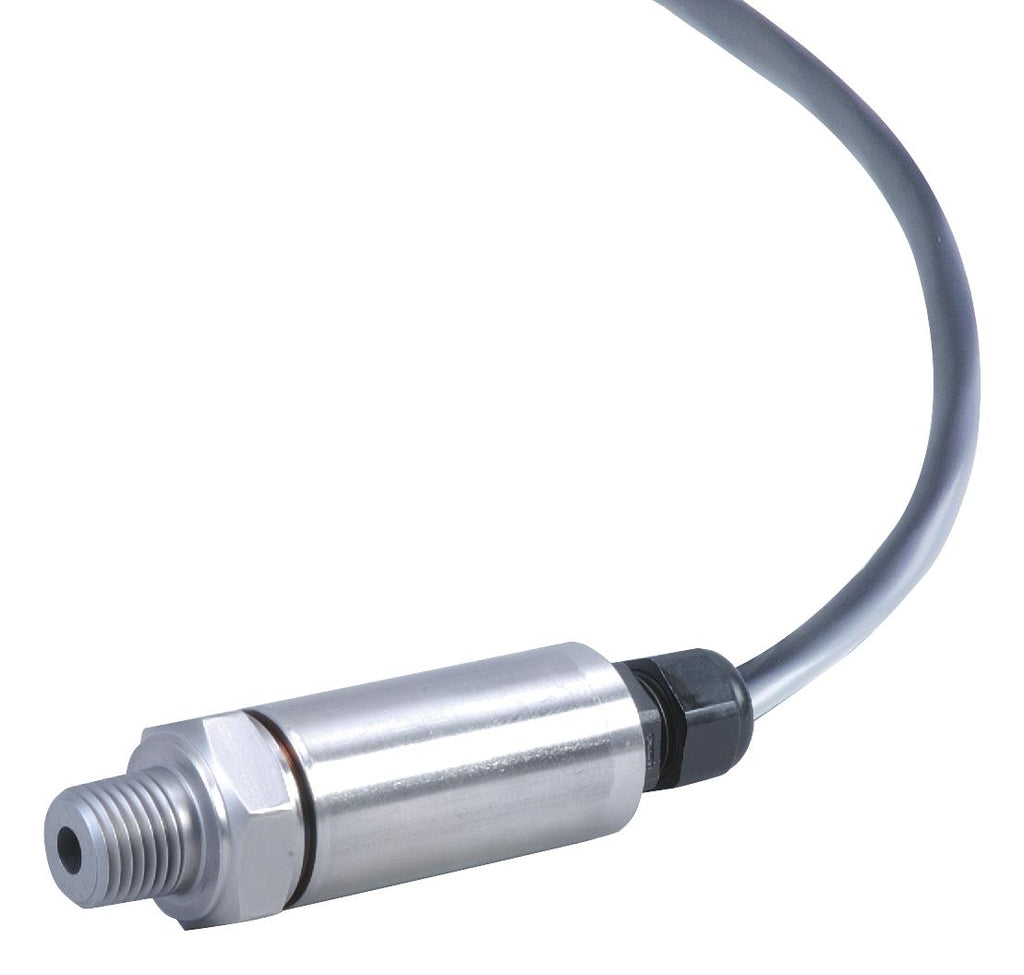

PX309 series high performance general purpose pressure transducer uses two state-of-the-art silicon technologies. It has an accuracy of ±0.25% FS BSL (Combined Linearity, Hysteresis and Repeatability).
- Gauge pressure range from 0 to 517bar, 0 to 7500psi
- All stainless steel construction
- 0 to 5VDC output
- High stability, low drift
- IP65 protection class
- Rugged, solid state design
- Long term stability of ±0.25% typical (1 year)
- Operating temperature range from -40°C to 85°C (-40°F to 185°F)
- ¼-18 MNPT pressure port
- 1.5m (5'') cable connection
General purpose pressure transducer, 5-point NIST-traceable calibration.
Other details
| Brand | OMEGA |
| Part Number | PX309-7.5KG5V |
| Quantity | Each |
| Technical Data Sheet EN |  |
