| ₹ 68322.84 includes GST and import duties. | |
| B2B customers can avail ₹ 10419.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

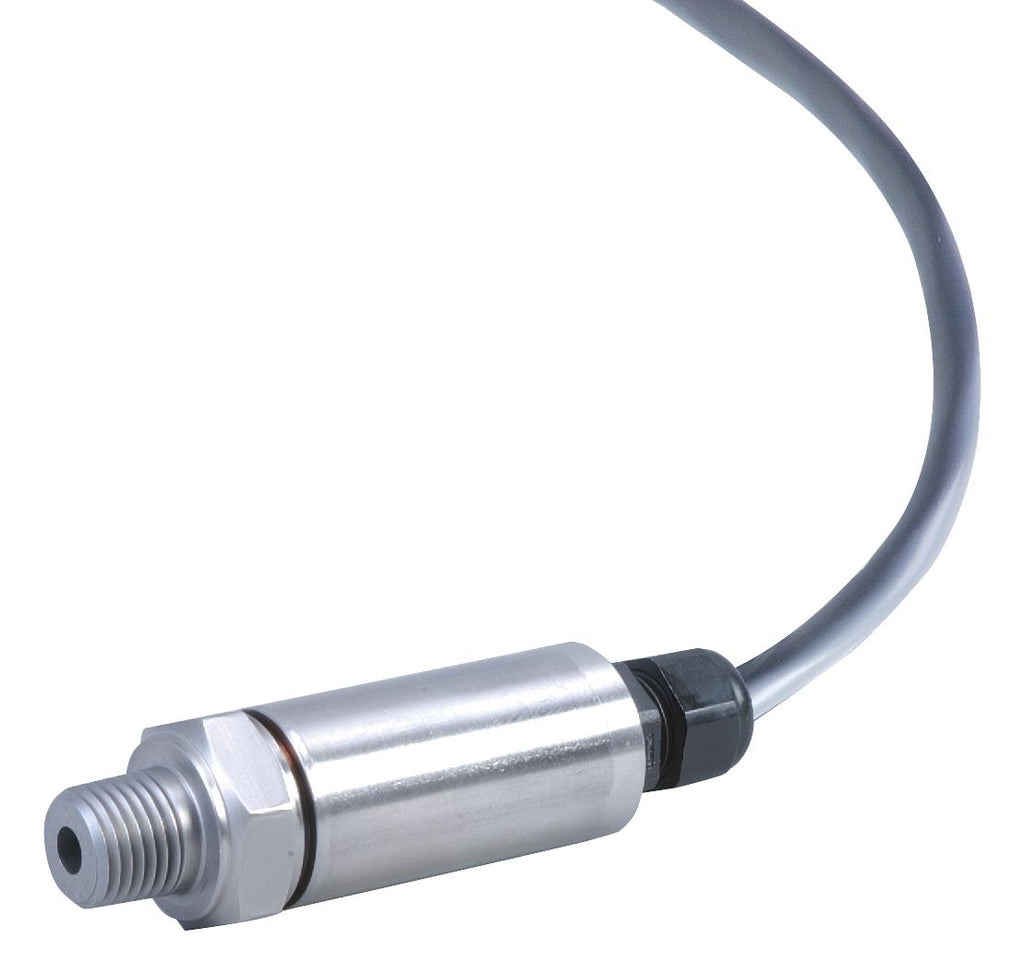

PX309 series high performance general purpose pressure transducer uses two state-of-the-art silicon technologies. It has an accuracy of ±0.25% FS BSL (Combined Linearity, Hysteresis and Repeatability).
- Gauge pressure range from 0 to 1bar, 0 to 15psi
- All stainless steel construction
- 0 to 5VDC output
- High stability, low drift
- IP65 protection class
- Rugged, solid state design
- Long term stability of ±0.25% typical (1 year)
- Operating temperature range from -40°C to 85°C (-40°F to 185°F)
- ¼-18 MNPT pressure port
- 1.5m (5'') cable connection
General purpose pressure transducer, 5-point NIST-traceable calibration.
Other details
| Brand | OMEGA |
| Part Number | PX309-015G5V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 66956.38 |
| 3-5 | ₹ 66273.15 |
| 5-10 | ₹ 64906.7 |
| 10+ | ₹ 63540.24 |
Bulk discount will be automatically applied during checkout based on quantity.
