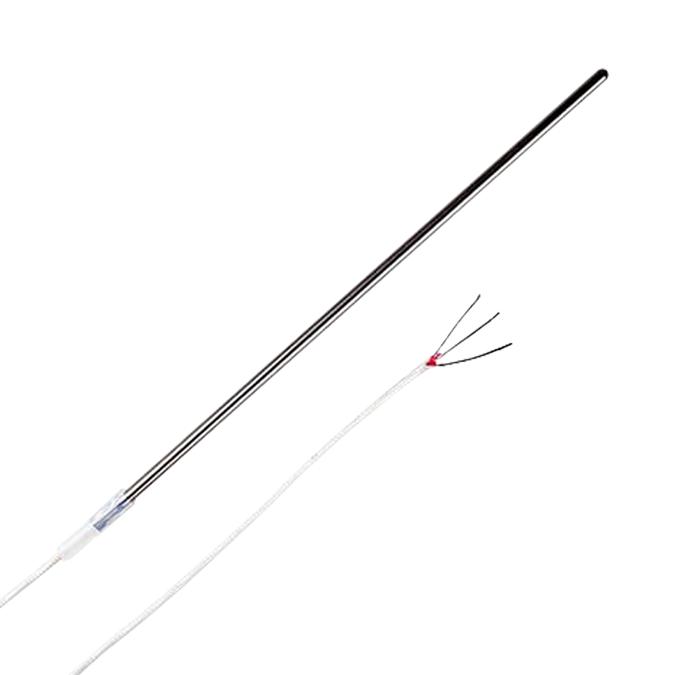

PR-10L series is RTD probe with insulated wire and shrink-tube support at the sheath/wire transition to provide wire flexibility and durability. Applications for this probe include liquid immersion, slurries and emulsions, granular material measurements, as well as temperature monitoring of heat bars, kilns, and pipes. This probe is suited for both process and laboratory temperature measurements.
- Low temperature range from -50 to 250°C
- Number of wires are 3
- Nominal resistance is 100 ohm
- Sheath diameter is 6.35mm
- Sheath length is 50.8mm
- Stripped leads cold end termination
- Class A accuracy
- IP67 rated
- 40" standard (longer lengths may be built using our configurator) PFA wire
Other details
Brand |
OMEGA |
Part Number |
PR-10L-3-100-1/4-2 |
Quantity |
Each |
Technical Data Sheet EN |
|
