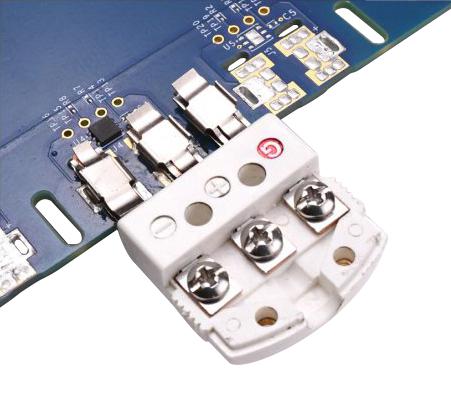

PCC-SMD series is a circuit board thermocouple and RTD connector. Take advantage of the built-in cold junction compensation features of user chosen analogue to digital converter (ADC). The flat bottoms of this connector has a superior design that thermally couples them to the circuit board for ideal cold-junction compensation. This SMT populated connector can be used with any thermocouple calibration and are designed for low-cost, high-volume production. This also features a patent-pending asymmetric design that prevents connector from being plugged in backwards.
- Surface mount device can be soldered directly to PCB
- Regular mount
- 1 contact per pin connection great for RTD's and thermistors
- Perfect for handheld thermometers and dataloggers
- Universal calibration provides great accuracy when paired with integrated cold junction compensation
- Made of nickel-plated beryllium copper, boasting a high operating temperature range
- Patent-pending design features reverse polarity protection for error-proof assembly

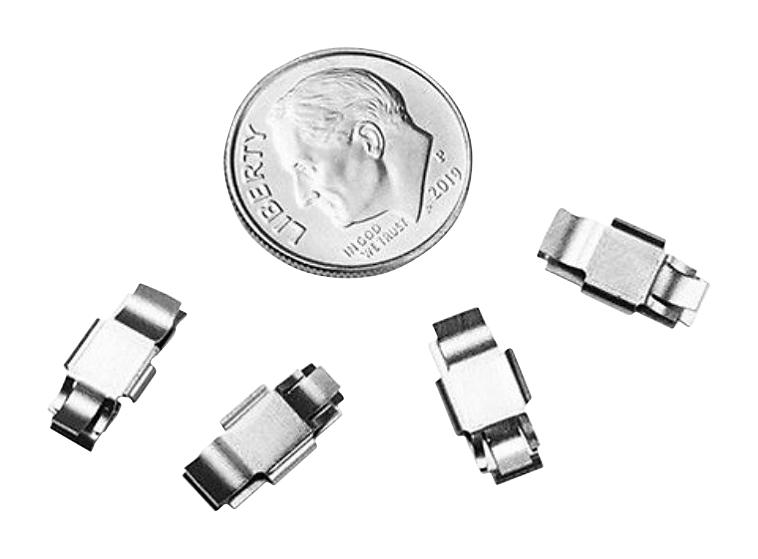

- Miniature size for SMT
Other details
| Brand |
OMEGA |
| Part Number |
PCC-SMD-20 |
| Quantity |
Pack of 20 |
| Technical Data Sheet EN |
 |
