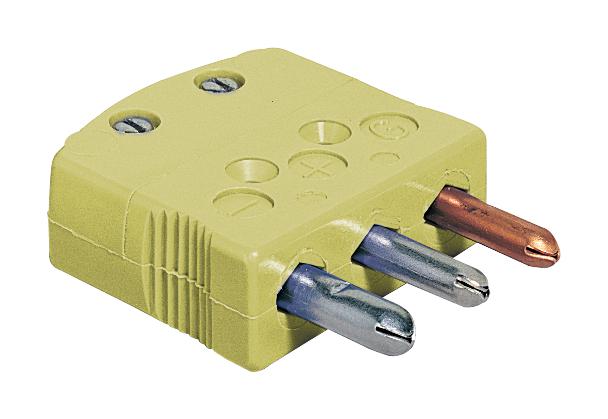

OTP series 3-prong standard heavy duty connector is standard sized with round pins. This quick disconnect plug and jack provides reliable connections between thermocouple, RTD or thermistors and extension wires. TheseColor-coded bodies are moulded of high performance glass-reinforced nylon. Tubular plug prongs and collet-type jack inserts have low mass and reduce temperature gradients. Negative prongs and inserts are larger than positives to insure proper polarity upon connection. This is a standard feature on all OMEGA� connectors. Recommended for most applications requiring three-wire circuits, including shielded thermocouples, thermistors and RTDs. Especially useful for continuing thermocouple shield leads through panel jacks. Will withstand ambient temperatures to 220°C.
- Supplied with shielded wire copper connection pin
- High-impact construction
- Color-coded for ANSI or IEC
- Accepts stranded or solid wire up to size 14AWG
- Combination Philips/slot screws
- Glass-filled nylon, rated from -29 to 180°C
- Shell colour is yellow
- Type of thermocouple used with connector is CHROMEGA®, ALOMEGA®
- Male connector
Other details
| Brand |
OMEGA |
| Part Number |
OTP-K-M |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
