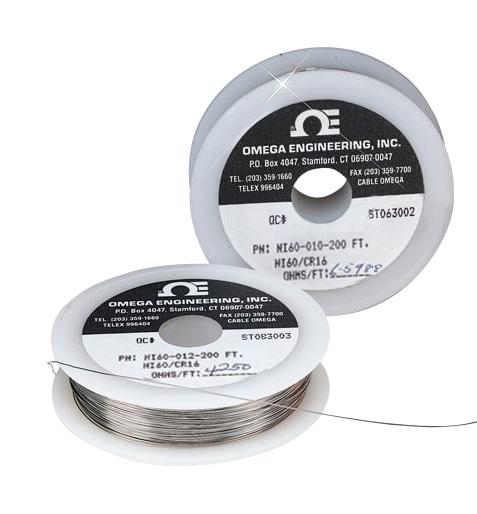

NI60-032-200 is a resistance heating wire. It is an alloy of 60% nickel and 16% chromium, and is the accepted material for heating devices operating up to 1000°C (1850°F). This encompasses most pluggable power cord domestic heating appliances and those heating units of medium temperatures which do not require the unsurpassed quality of NI/CR-80/20, the 80-20 alloy. The excellent corrosion resistance of Nickel-Chrome 60 makes it very useful for purposes other than electrical heating.
- Used to make straight or helical coil resistance heaters
- Quick heating, long life
- Corrosion resistant
- Wire size is 20AWG
- 0.81mm diameter
- 60% Ni, 16% Cr, balance Fe composition
- Approx 1350°C melting point
- 200feet length
Product details
| Thermocouple Wire Type:
-
|
| Length - Imperial:
200ft
|
| Length - Metric:
60m
|
| No. of Max Strands x Strand Size:
-
|
| Wire Gauge:
20AWG
|
| Conductor Area CSA:
-
|
| Product Range:
-
|
Other details
| Brand |
OMEGA |
| Part Number |
NI60-032-200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
