Description
Product Overview

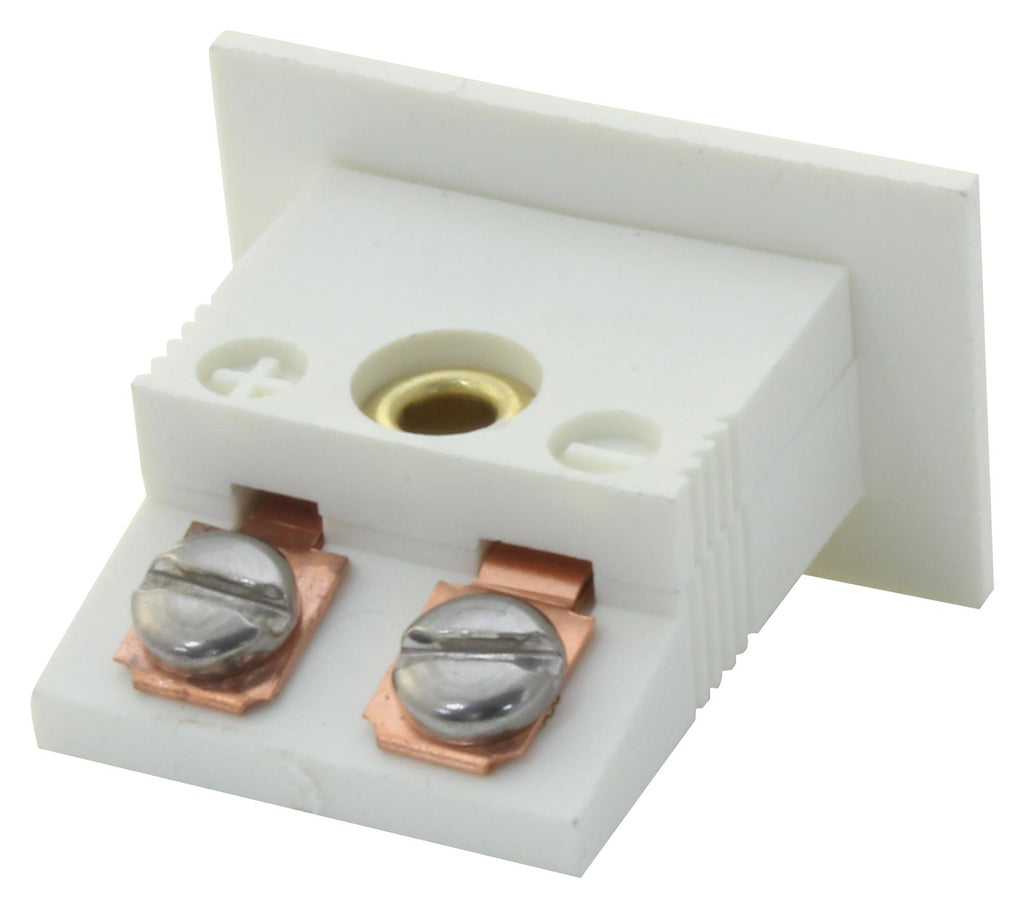

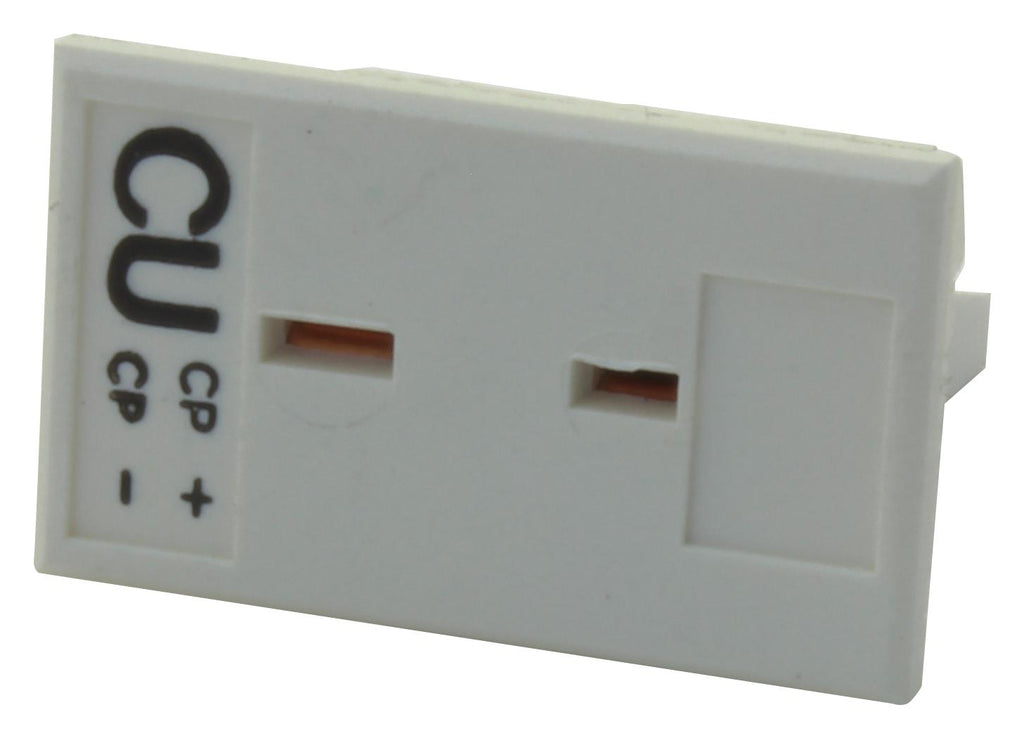

MPJ miniature panel jack requires less than half of the panel area required by the standard size connectors. A simple push-on clip is all that is required to retain the connector in a rectangular cut-out, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.
- Female miniature panel jack with type U calibration
- Easy mount with spring clip
- Accessible terminal screws
- Color-coded
- Accepts OMEGA�s as well as all industry standard miniature male connectors
- Glass-filled nylon rated from -29 to 180°C (-20 to 356°F)
Notes
Connectors come with mounting hardware (spring clip).
Product details
Other details
| Brand | OMEGA |
| Part Number | MPJ-U-F |
| Quantity | Each |
| Technical Data Sheet EN |  |
