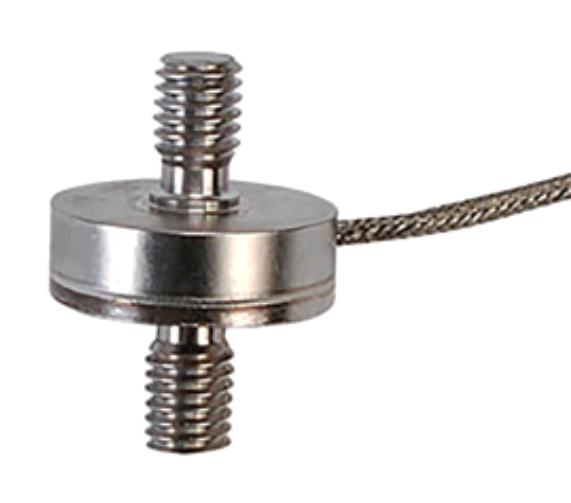

LCM201 series sub miniature load cell is designed for the demanding environment of industrial automation and robotics. With a diameter of only 19 mm (0.75") and all stainless steel construction, it can fit into small systems and survive harsh environments. The LCM201 delivers high accuracy and long term reliability in a sub miniature package.
- Sub miniature tension and compression load cell with ± 200 Newton range
- 19mm diameter
- Dual mounting studs for easy installation
- 5-point calibration with 59Kohm shunt cal data provided
- 1.5m (5') 4-conductor shielded cable with compensation board
- Compatible DP41-S, DP25B-S meters
- Operating temperature range from -54 to 121°C
Other details
| Brand |
OMEGA |
| Part Number |
LCM201-200N |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
