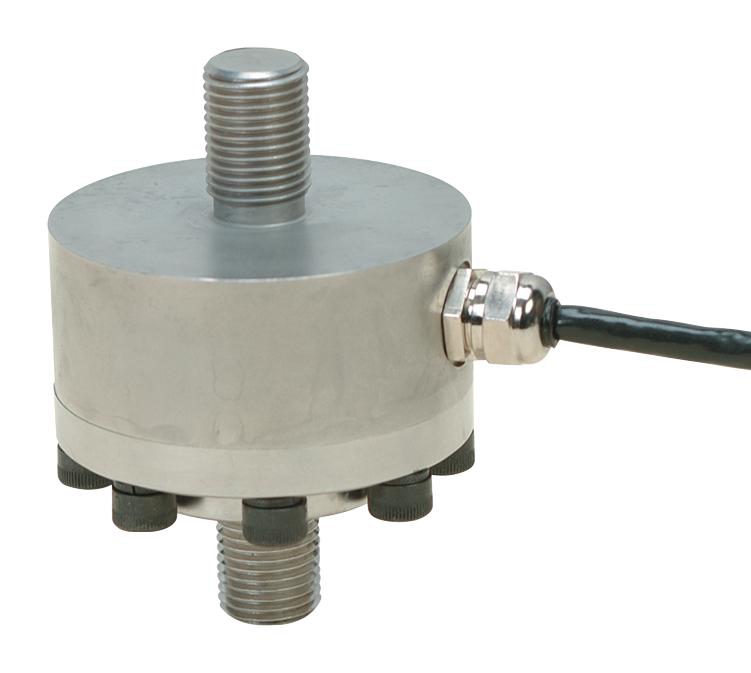

LC203 series is a high accuracy, miniature, low profile industrial load cell. It is supplied with a stud at each end for easy in-line mounting. The tough, corrosion resistant steel construction and high accuracy strain gauges make them suitable for most industrial weighing applications.
- 1.0% interchangeability for scale applications
- Hermetically sealed
- Miniature package for test stands and difficult locations
- Heavy-duty construction
- 5-point calibration
- Excitation is 10VDC, 15VDC maximum
- Output is 2mV/V ±1.0%
- IP65 rated
- Operating temperature range from -46 to 107°C
- 3m (10') 4-conductor PVC shielded cable, capacity is 200lb
Other details
| Brand |
OMEGA |
| Part Number |
LC203-200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
