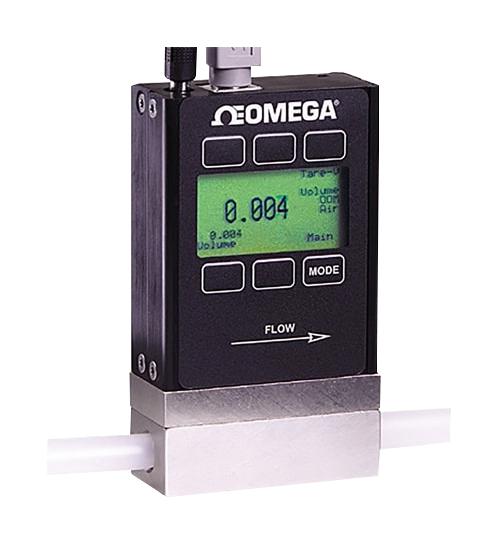

Omega FMA-1619A-V2 FMA-1619A-V2 Mass Air Flow Sensor 500 cc/min 145 psi 7 V 30 1/8" Fnpt

FMA-1600A series mass and volumetric Omega's flow meters use the principle of differential pressure within a laminar flow field to determine the mass flow rate. A laminar flow element (LFD) inside the meter forces the gas into laminar (streamlined) flow. Inside this region, the Poiseuille equation dictates that the volumetric flow rate be linearly related to the pressure drop along a fixed distance of the LFE. This, along with the viscosity of the gas, is used to accurately determine the volumetric flow rate. Separate absolute temperature and pressure sensors are incorporated and correct the volumetric flow rate to a set of standard conditions.

• Maximum flow rate is 500 SCCM
• Two 0 to 5V output
• RS232 communications
• 1/8 FNPT connection
• <10ms response time-field adjustable
• 130+ gas calibrations including pure and mixed gases
• Gas meter with display
• No warm-up time required
• No straight runs of pipe required
• 200:1 turndown ratio

Contents

Mass flow meter, 24VDC power supply, 1.8m (6') cable, 8 pin male mini DIN connector, Operator's manual and NIST certificate.

Other details

Brand	OMEGA
Part Number	FMA-1619A-V2
Quantity	Each
