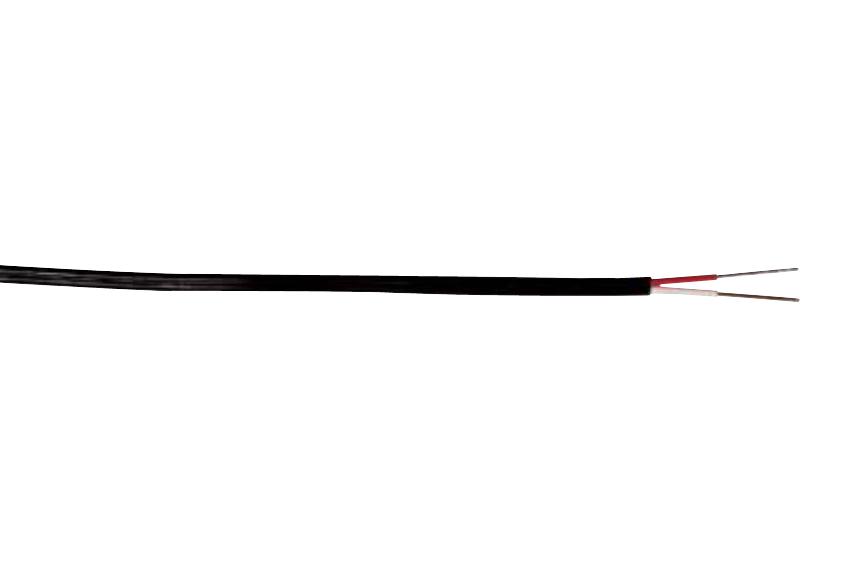

EXPP-J-20S-TWSH-UL-100 is a UL listed twisted shielded extension grade thermocouple wire. It is ideal for systems sensitive to induced voltages and electrical noise. The wire conductor is insulated with color-coded PVC, then twisted with a tin/copper drain wire. Next, an aluminized polyester tape is wrapped around the wires, followed by a final layer of PVC coating. The wire is UL listed for power limited tray cable (PLTC) applications.
- UL listed Type PLTC, 300V; listed under UL subject 13, file E153789
- Extruded PVC single conductor and duplex insulation
- ANSI colour coded
- Aluminized polyester shield with drain wire reduces electrical noise
- Resistant to moisture, abrasion, chemicals and UV light
- 20S AWG, 0.97mm bare conductor diameter
- Overall nominal insulation thickness is 0.89mm
- Nominal overall size is 5.8mm
Other details
| Brand |
OMEGA |
| Part Number |
EXPP-J-20S-TWSH-UL-100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
