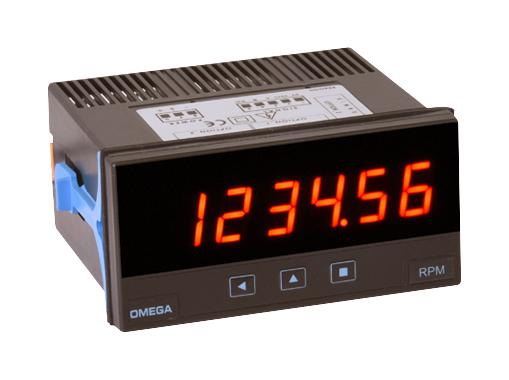

DPF20-HV-AO is a DPF20 series frequency panel meter. DPF20 series of indicator offer real flexibility for measurement of a wide range of frequency or pulse inputs. The display is easily configured to indicate frequency, rate, period or count. This makes the meter ideal for flow applications where this can display flow rate or total from a variety of different flow sensors. Or for quadrature signals, to indicate angular position or rotational speed and direction. Typical application are industrial flow rate or total indication and alarm or control, angular position or RPM indication (with quadrature sensor), product/piece counting or production rate indication.
- 85 to 260VAC powered
- 5 year warranty
- Dual channel (A + B + reset)
- NEMA 4 (IP65) front panel
- Excitation power supply of 5 to 18VDC at 70mA
- Digit height is 14mm, up to 250KHz counter
- Plug-in screw terminal
- Operating temperature range from 0 to 50ºC
- Front panel size is 96 x 48mm
Other details
| Brand |
OMEGA |
| Part Number |
DPF20-HV-AO |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
