| ₹ 70584.93 includes GST and import duties. | |
| B2B customers can avail ₹ 10764.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

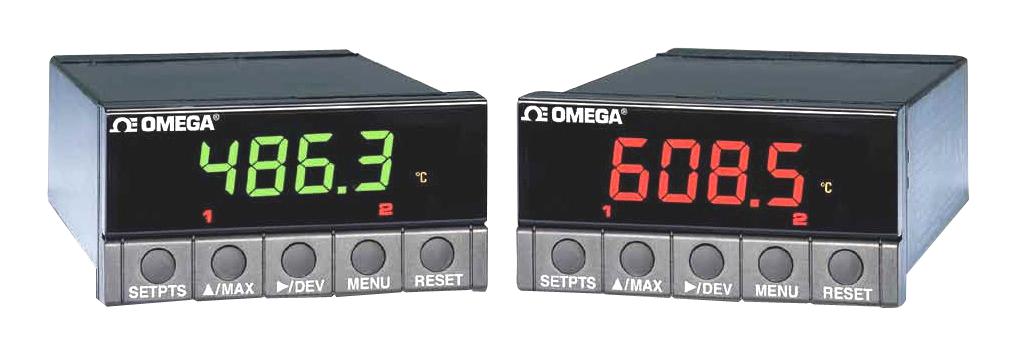

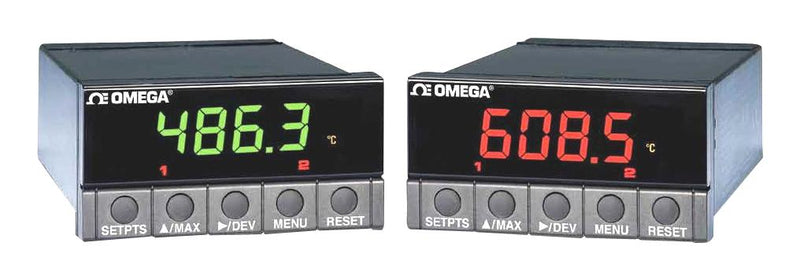

This is a PANEL METER, STRAIN GAUGE, 4-DIGIT, 115V product from OMEGA with the model number DP25B-S-A
Product details
| No. of Digits / Alpha | 4 |
| Meter Function | Strain Gauge / Process |
| Meter Range | 0mV to 100mV / ± 50mV / 0V to 10V / ± 5V / 0mA to 20mA / 4mA to 20mA |
| Digit Height | 21mm |
| Panel Cutout Height | 45mm |
| Panel Cutout Width | 92mm |
| Supply Voltage Min | - |
| Supply Voltage Max | 115VAC |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Product Range | DP25B Series |
Other details
| Brand | OMEGA |
| Part Number | DP25B-S-A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 69173.23 |
| 3-5 | ₹ 68467.38 |
| 5-10 | ₹ 67055.68 |
| 10+ | ₹ 65643.98 |
Bulk discount will be automatically applied during checkout based on quantity.
