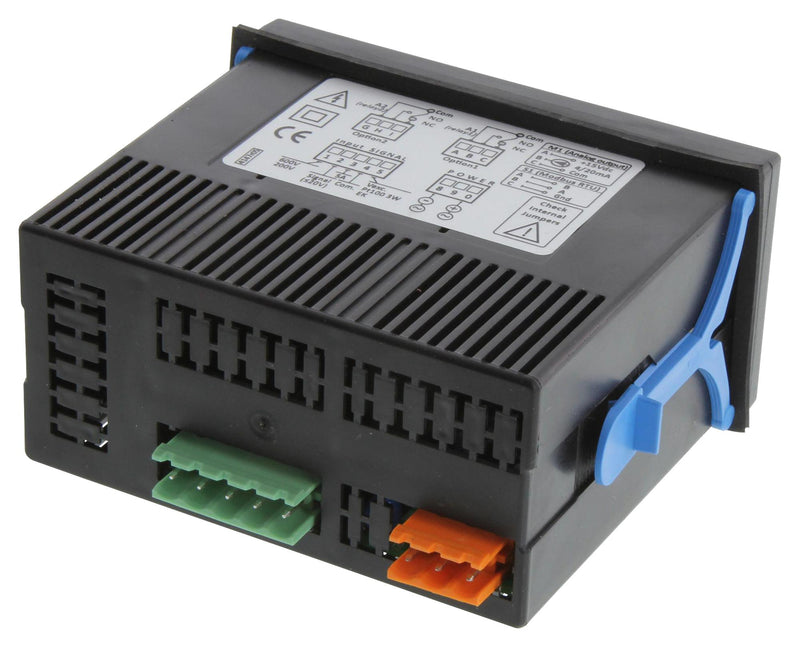

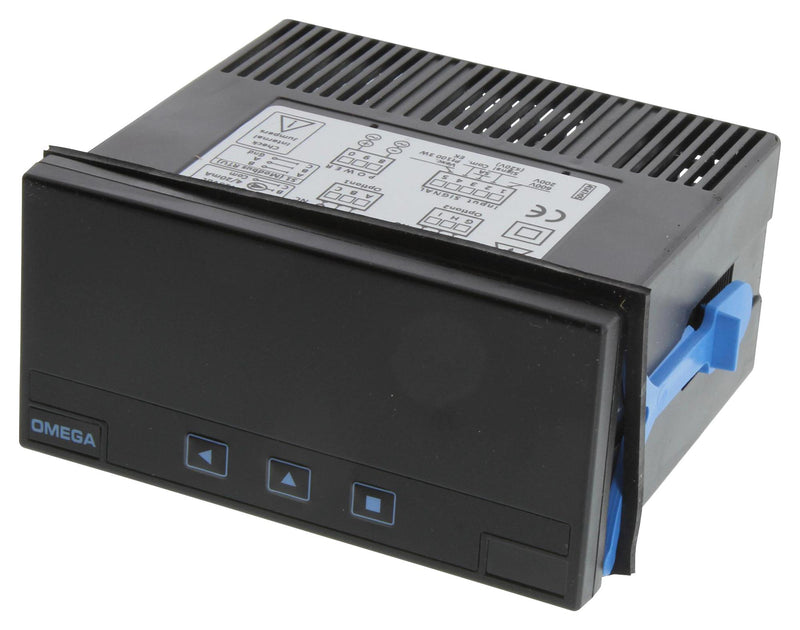

DP20 is a 1/8 DIN multisignal panel meter with universal 18/265VAC/DC power supply. It accepts universal inputs, including thermocouple, RTD, process (mA and Vdc), resistance and true RMS voltage and current. Additional features of the economical panel meter include scaling, NEMA 4 (IP65) protection, and programmable decimal points. Typical applications are assembly line, control panel, laboratory.
- Fast access menu-front key access to modify the alarm setpoints and max/min memory
- External control function-contact at multifunctional terminal 5
- Automatic, power saving eco mode
- Alarms 1 or 2, independent, configurable as max/min, with setpoint and hysteresis
- Reading offset-configure a fixed number of counts to be added to the reading
- Second scaling function-define two scalings for the same signal and control
- Recursive display filter for noisy signals, configurable steps for min predefined changes on reading
- 5 levels of brightness intensity, password protection
- Operation temperature range from 0 to 50ºC
- Plug-in screw terminal connection, NEMA 4 (IP65) protection
Other details
| Brand |
OMEGA |
| Part Number |
DP20 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
