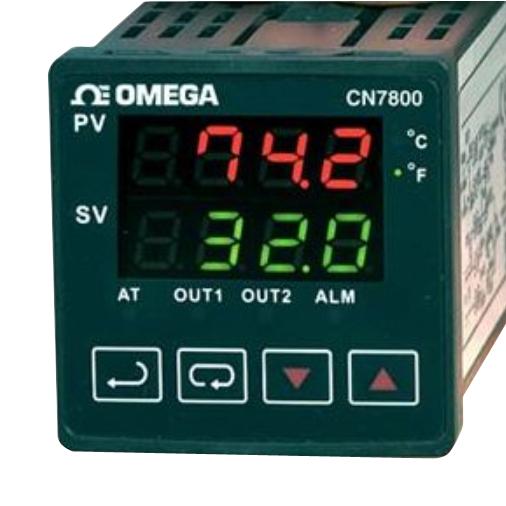

CN7800 series is a 1/16 DIN ramp/soak controller. Monitor and control temperature or process applications with precision using the this series controllers. This series provides dual LED displays for local indication of process value and setpoint value. Control methods include on/off, PID, auto-tune and manual-tune. PID control is supported with 64 ramp/soak control actions. Two additional alarm outputs are standard on the CN7800 series. The alarm outputs can be quickly configured by using the 13 built-in alarm functions. The controller communicates easily with the built-in RS485 interface.
- Dual display, autotune, universal input
- 8 ramp/soak programs, 8 segments each, programmable repeat and linking features
- RS485 communications, free software, 2 alarm standard
- Dual output, 4 to 20mA/relay, 2 alarms
- Supply voltage is 100 to 240VAC, 50/60Hz
- Power consumption is 5VA maximum
- Operating temperature range from 0 to 50°C
- Non-volatile backup memory
- Communication is RS485 MODBUS® A-5-11/RTU communication protocol
- Maximum panel thickness is 9.50mm, panel depth is 80mm
Product details
| Thermocouple Type:
B, E, J, K, L, N, R, S, T, U, Pt100
|
| Operating Temperature Max:
50°C
|
| Operating Temperature Min:
0°C
|
| Temperature Accuracy ±:
-
|
| Output Voltage Max:
250VAC
|
| Output Voltage Min:
-
|
| Product Range:
CN7800
|
Other details
| Brand |
OMEGA |
| Part Number |
CN7853 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
