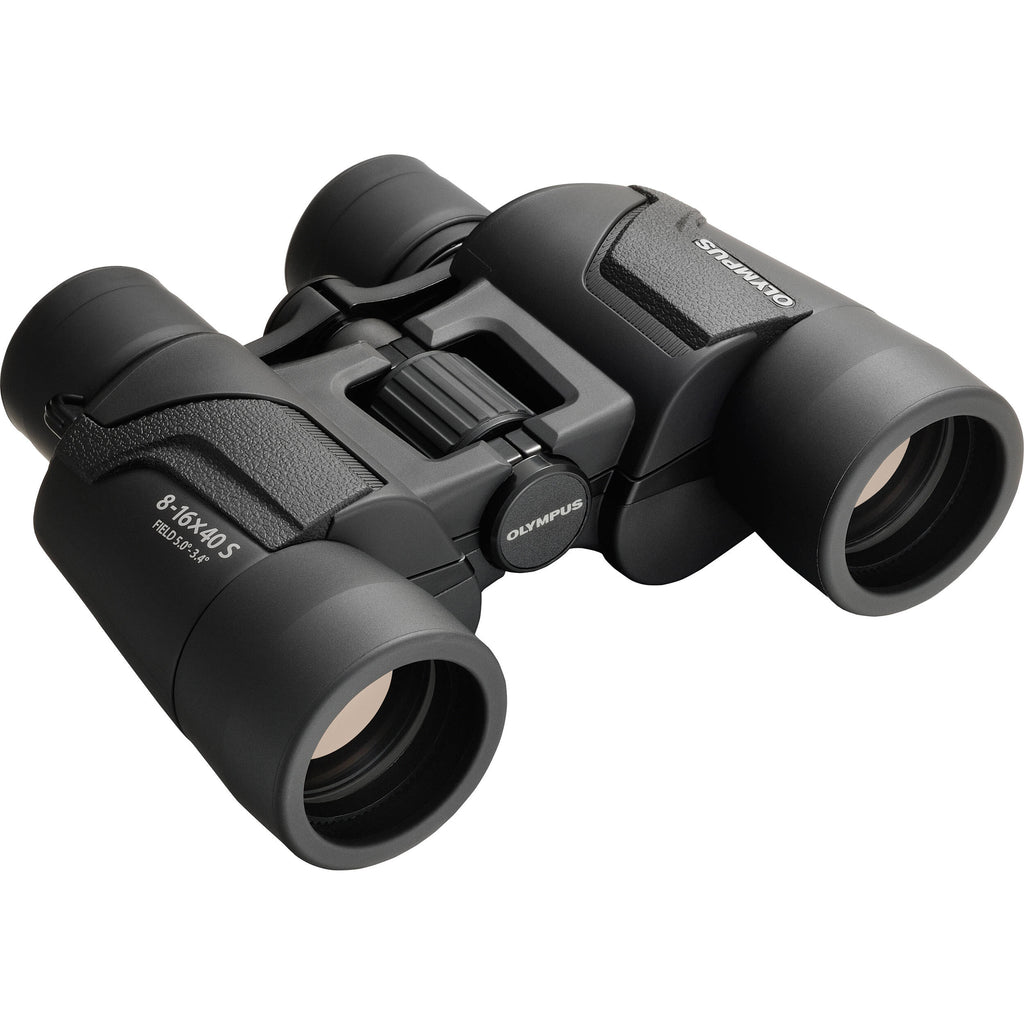

Olympus 8-16x40 Explorer S Zoom Binoculars (Black)

Traditional Porro Prisms

Powerful Zoom Mechanism

Anti-Reflection Coated Optics

Slip-Resistant Rubber Armor

The Olympus 8-16x40 Explorer S Zoom Binoculars feature a powerful zoom capability that offers an immersive viewing experience. You can scan the terrain for objects of interest on low power and dial up the magnification to make detailed observations and identification at long ranges.

Their traditional Porro prisms present you with a rich depth of field that allow you to more easily discern the distances between objects in your view for a real "3D" experience. Anti-reflection coated optics maximize the light entering the objectives to produce bright and clear images with accurate colors and crisp resolution. A knurled center focus wheel and an elastic polymer armored grip assist handling and give you precise control of the optic, while fold-down eyecups provide comfortable use with or without eyewear.

Optical Performance

• Versatile zoom range allows you to scan the terrain on low power and dial up the magnification for detailed observation and identification
• Powerful magnification range from 8x to 16x is ideal for nearly all glassing needs
• 40mm objective lenses boost low-light capability without adding excessive weight and heft
• Traditional Porro prism optical path produces a rich depth of field with true stereoscopic vision for a more "3D" viewing experience
• 6-element/4-group lens design helps to reduce fringing and distortion, making views appear sharp and flat with little edge curvature through zoom range
• Anti-reflection coated optics improve light transmission, contrast, and color rendition
• 262-foot field of view at 1000 yards on 8x, 178 feet on 16x

Use and Handling

• Large textured slip-resistant center focusing wheel is easy to manipulate, even when wearing gloves
• 60-70mm interpupillary distance adjustment range
• Fold-down rubber eyecups for comfortable use with or without eyewear
• 12mm eye relief on 8x, 10mm on 16x
• Wide 5mm exit pupil on low power ensures coverage of pupils when dilated in low light

Construction Details

• Porro prism design produces a naturally ergonomic form factor that is center-weighted for better balance and control with a comfortable feel in the hand
• Elastic polymer armor provides a slip-resistant grip

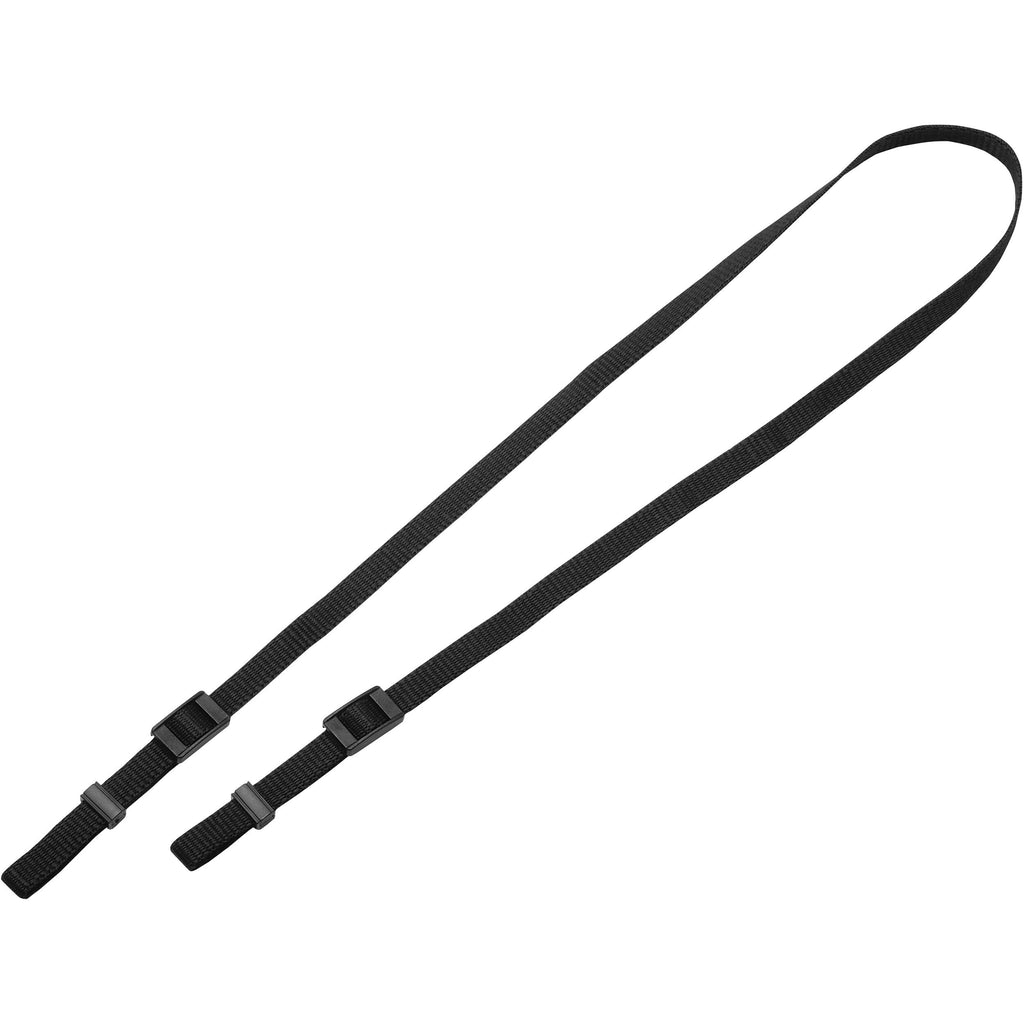

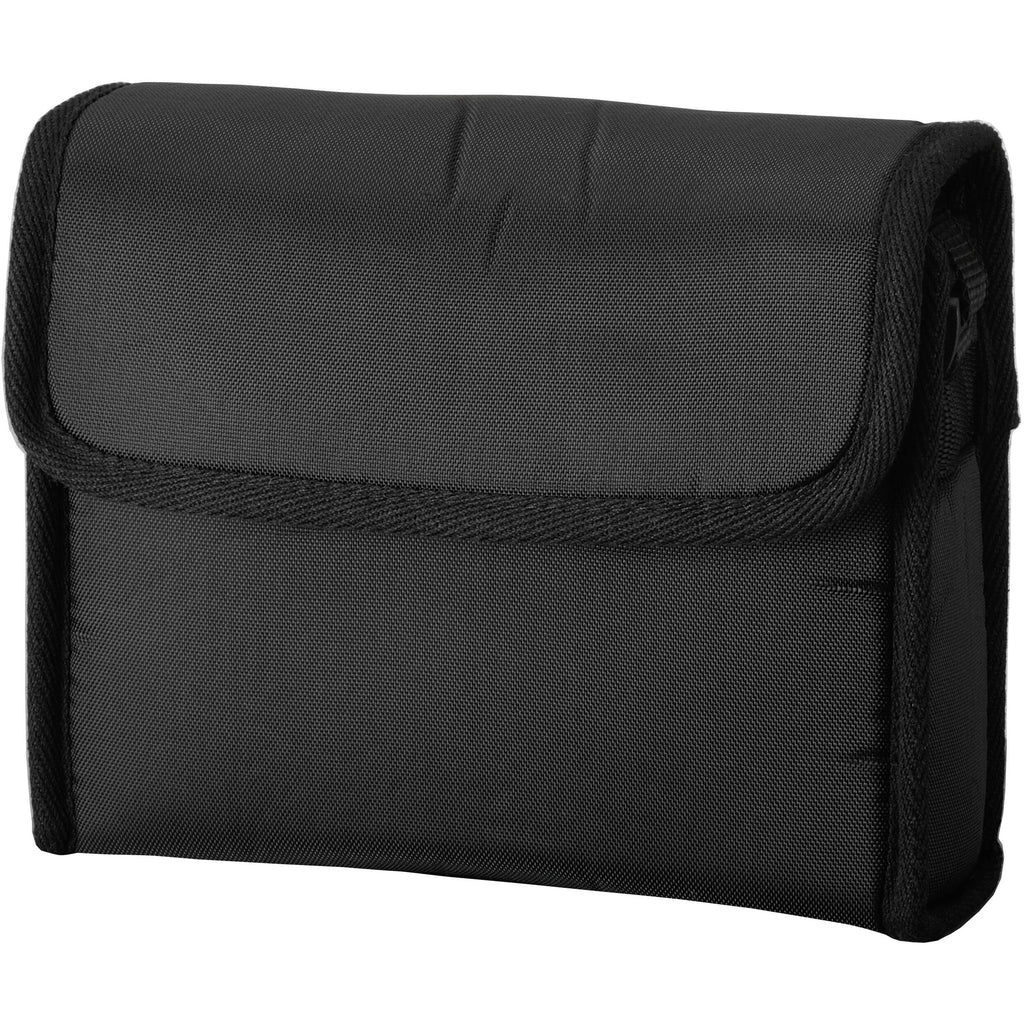

• Caps, case, and strap included
• Weight 28 ounces

UPC: 050332192799

Prism Type

Porro

Magnification	8 to 16x
Objective Lens Diameter	40 mm
Angle of View	8x: 5.0° (Actual) 16x: 3.4° (Actual)
Field of View	8x: 262' @ 1000 yd / 87 m @ 1000 m 16x: 177.7' @ 1000 yd / 59 m @ 1000 m
Minimum Focus Distance	32.8' / 10 m
Exit Pupil Diameter	8x: 5 mm 16x: 2.5 mm
Eye Relief	12x: 10 mm
Interpupillary Adjustment	60 to 70 mm / 2.4 to 2.8"
Focus Type	Center

Water Resistance

None

Dimensions	7.2 x 6.1 x 2.4" / 183 x 154 x 60 mm
Weight	28 oz / 795 g

Package Weight	2.355 lb
Box Dimensions (LxWxH)	7.7 x 7.4 x 3.4"
