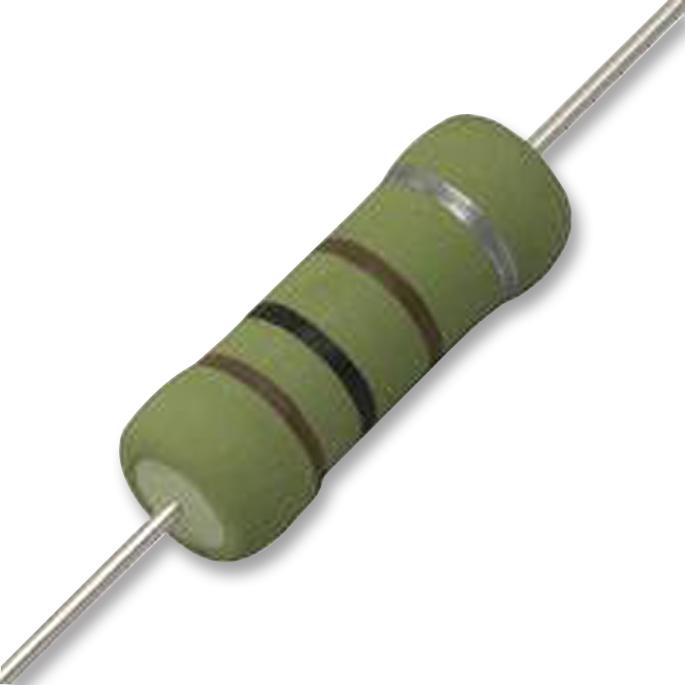

The OX/OY Series of fixed ceramic resistors are ideal for circuitry associated with surges, high peak power or high energy. They offer enhanced performance in high voltage power supplies, R-C snubber circuits, and inrush limiters. The OX/ OY resistors can often replace carbon composition resistors which can be difficult to source.
- Replaces 1 and 2 watt carbon composition resistors
- Meets high energy density demands
- High peak power
- 10% Tolerance
Product details
| Resistance:
27ohm
|
| Product Range:
OY
|
| Power Rating:
2W
|
| Resistance Tolerance:
± 10%
|
| Resistor Case / Package:
Axial Leaded
|
| Voltage Rating:
400V
|
| Resistor Technology:
Ceramic
|
| Temperature Coefficient:
-1300, ± 300ppm/°C
|
| Resistor Type:
High Surge
|
| Product Diameter:
7mm
|
| Product Length:
22.5mm
|
| Product Width:
-
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
220°C
|
| Qualification:
-
|
Other details
| Brand |
OHMITE |
| Part Number |
OY270KE |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
