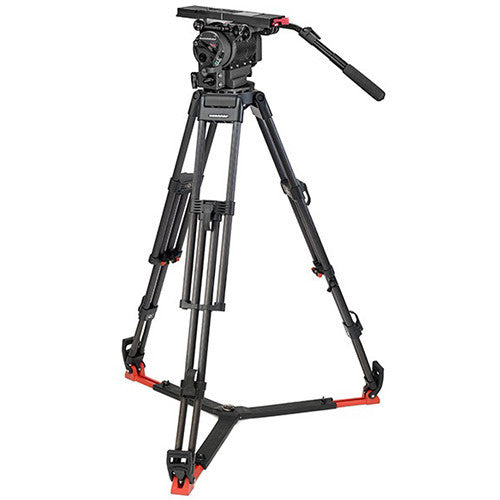

OConnor Ultimate 2560 Fluid Head & 60L 150mm Bowl Tripod with Floor Spreader

The Ultimate 2560 Fluid Head & 60L Tripod from OConnor includes the Ultimate 2560 fluid head package, 60L two-stage tripod system with a 150mm bowl and a floor spreader. The fluid head is capable of supporting camera payloads up to 66 pounds at a 6" center of gravity above the platform, and offers a � 90� tilt range. The fluid head package comes with a 12" pan handle with 30� bend and 11.5" pan handle extension. It also comes packaged with both a Mitchell base and 150mm ball base with tie-downs for expanded tripod compatibility.

The 60L tripod weighs just 9 lb and has a double extension design that is safe and stable while carrying payloads up to 209 lb, even at its maximum height of 60.6". This lightweight tripod with 150mm bowl collapses down to 29.9" for easy transport. The floor spreader holds the tripod legs in position, providing rigidity and stability to the overall system.

• Ultimate 2560 Fluid Head Package

  The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 66 pounds at a 6" center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

  Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

  Key Features

  • Supports up to 66 pounds at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 18 lb
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • Mitchell base and 150mm ball base adapter with tiedowns
  • Euro-style quick release
  • Pan handle with pan handle extension

• 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl

  The OConnor 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl support tripod heads that have a 150 mm leveling ball. The legs feature 2-stages and weigh only 9 pounds, however they can support 209 pounds and extend from a minimum height of 22.8" to a maximum height of 60.6" when using the available mid level spreader.

  Each leg extends or retracts independently and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The dual spikes at the end of each leg provide extra grip when working on soft ground and the design of the spikes also provide a solid mounting surface for the optional rubber feet/spike protectors.

  The legs are designed to for use with an available mid level spreader for stability on uneven terrain. It also features OConnor's smart quick clamping system that provides a visible clamp lockdown. A small accessory hook under the 150 mm bowl allows you to hang various available tools and items such as a walkie talkie, tape measure or even a foam rubber pad for shouldering the legs during camera position changes.

• Floor Spreader for 30L / 60L Tripod

  The Floor Spreader for 30L / 60L Tripod from OConnor is a floor spreader designed for use with an OConnor 30L or 60L tripod. The floor spreader is also compatible with all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine).

  Compatible with 30L and 60L OConnor tripods, as well as all Sachtler 100 and 150 bowl tripods (with exception of DA 100 K, DA 150K, and Cine)

  Adjustable spreader legs

• Ultimate 2560 Fluid Head

• 2575-120 Large European Quick Release with 120mm Plate

• 2575-137 12" Pan Handle with 30 degree bend

• 2575-135 11.5" Pan Handle Extension

• 08281 Mitchell Base

• 08402 Mitchell Base Tiedown

• 08278 150mm Ball Base Adapter

• 08417 Tiedown

• Limited 1-Year Warranty (Extendable to 2-Year with Product Registration)

• Limited 1-Year Warranty, Extendable to 2-Years with On-line Product Registration

• Limited 1-Year Warranty; Extendable to 2 Years with With Registration
