Description

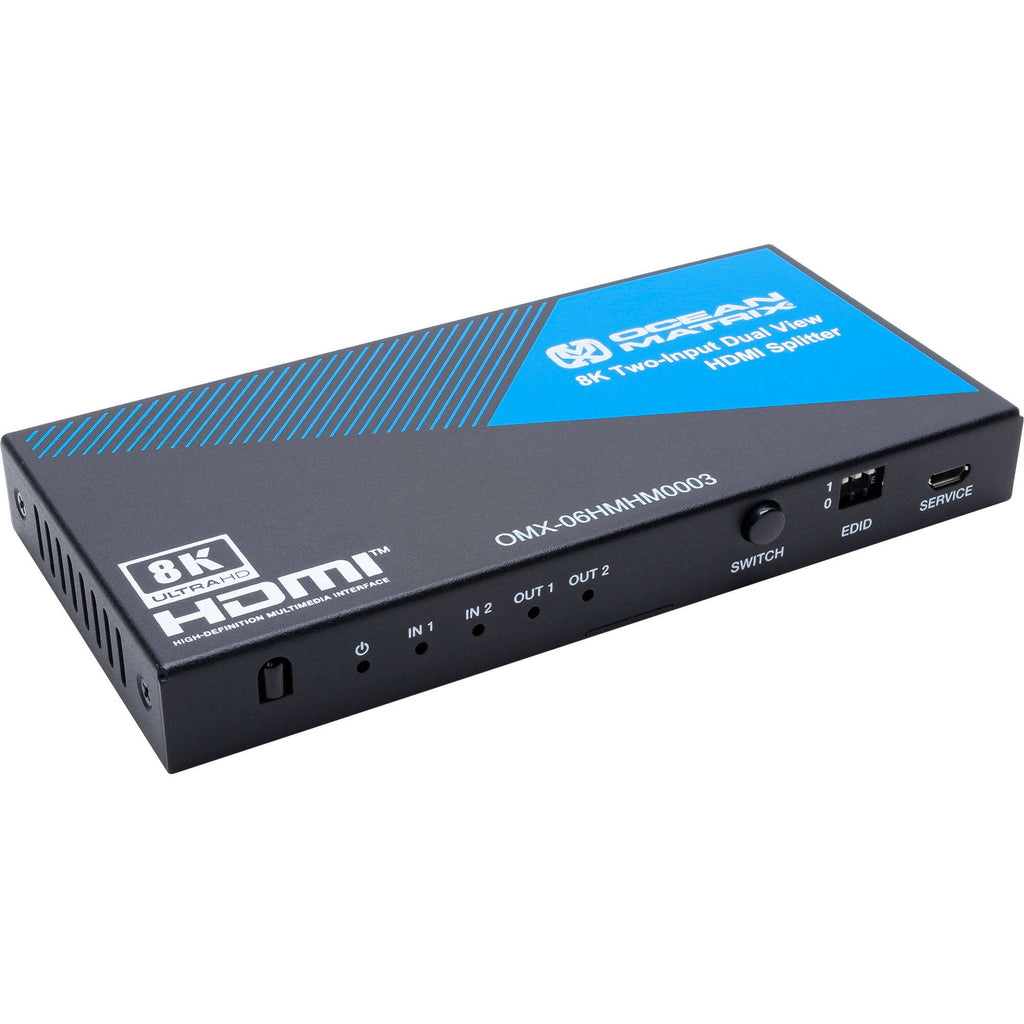

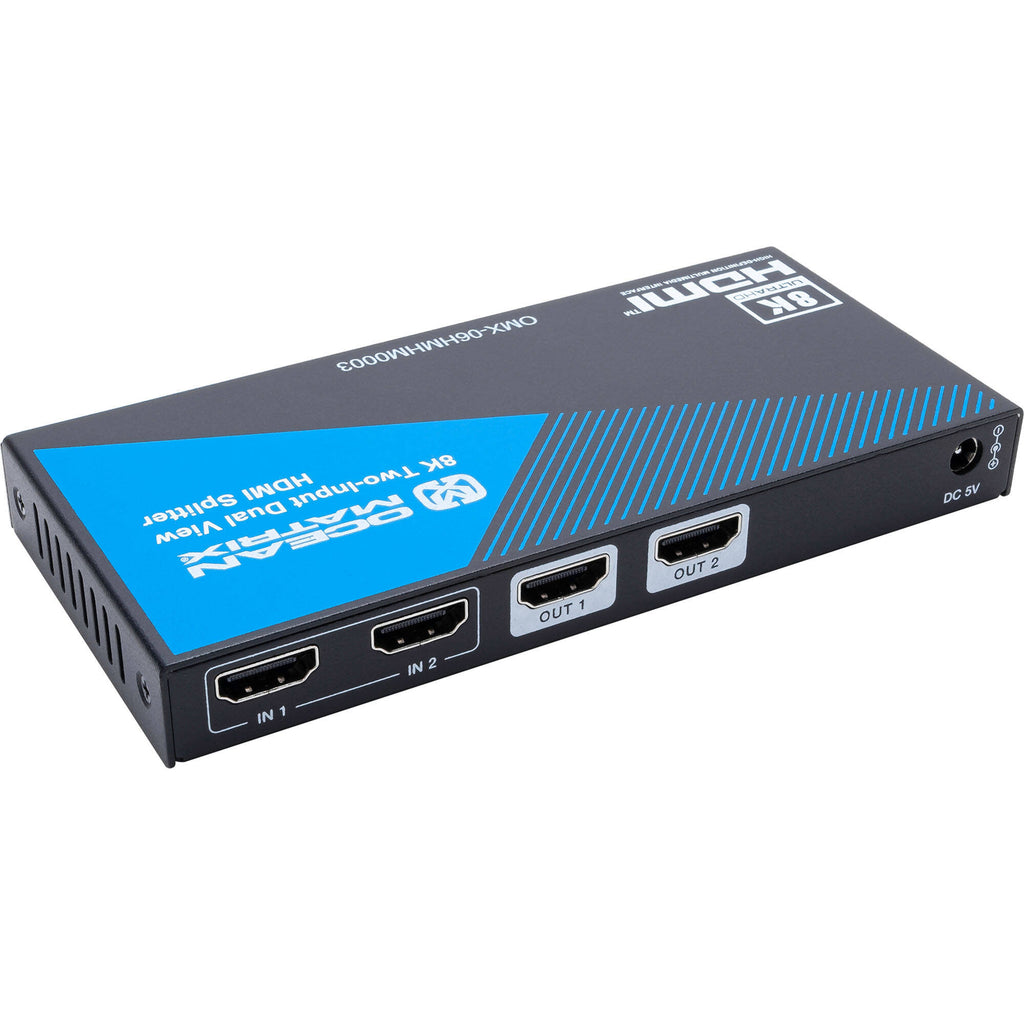

Ocean Matrix 06HMHM0003 Overview
- 1Description
- 22x1x2 Switcher
- 38K60 Video Support
- 4HDMI Audio Formats
- 5Compact Form
The 8K60 HDMI 2x1x2 Splitter from Ocean Matrix enables you to switch between 2 sources and simultaneously send the signal to two separate HDMI displays. This switcher supports up to 8K60 YCC 4:2:0 10-bit resolution video, HDR, HDR10/10+, and HDCP 2.3 functions. It has two HDMI 2.1 inputs and two HDMI 2.1 outputs and supports multiple HDMI-embedded audio formats including LPCM 7.1 CH, Dolby TrueHD, and DTS-HD Master Audio. This switcher comes with a power adapter and a remote control.
2x1x2 Switcher
This 2x1x2 switcher enables you to switch between two HDMI sources for simultaneous output to two separate HDMI displays.
8K60 Video Support
- Supports up to 4K60, YCC, 4:2:0, 10-bit resolution video
- Supports HDR/HDR10/10+ and HDCP 2.3 functions
- Up to 40 Gb/s video bandwidth
HDMI Audio Formats
- Supports LPCM 7.1 CH, DTS-HD, and Dolby Digital including DTS-HD Master Audio and Dolby TrueHD
Compact Form
This switcher's compact, plug-and-play form is suitable for gaming, conference rooms, lecture halls, and other meeting areas.
In the Box
- Ocean Matrix 8K60 HDMI 2x1x2 Splitter & Switcher with Dual Inputs

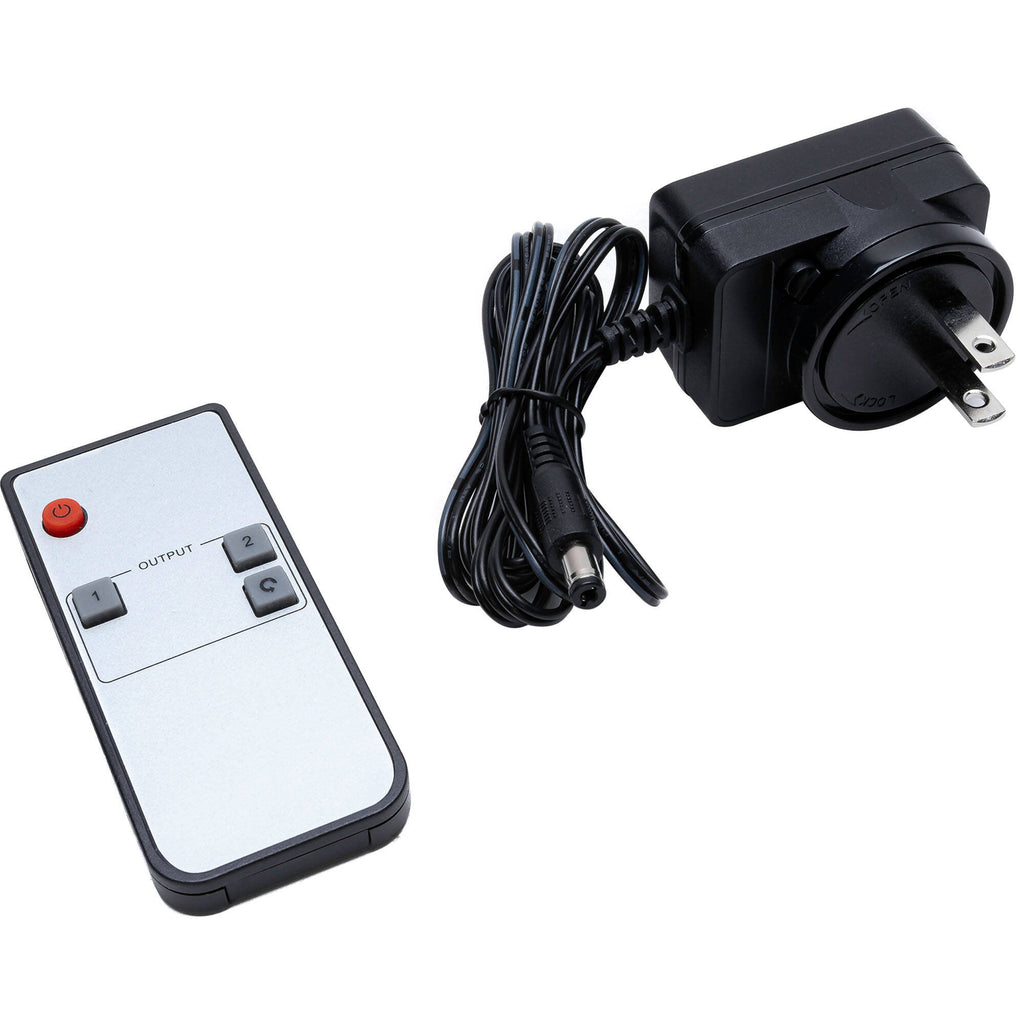

- Remote Control
- 5V, 1A Power Adapter
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- 2x1x2 Switcher
- 8K60 Video Support
- HDMI Audio Formats
- Compact Form
Ocean Matrix 06HMHM0003 Specs
Processing
| Switching Type | Pushbutton |
| Processing Resolution | 8K at 60 |
| Color Processing | 10-Bit 4:4:4 YCbCr 10-Bit 4:2:2 YCbCr 10-Bit 4:2:0 YCbCr |
Input
| Video Inputs | 2 x HDMI (HDMI 2.1) |
| Input Video Format | HDMI (10-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) 8K up to 60 fps UHD 4K up to 120 fps |
| Embedded Audio Input | HDMI |
Output
| Video Outputs | 2 x HDMI (HDMI 2.1) |
| Output Video Format | HDMI (10-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) 8K up to 60 fps UHD 4K up to 120 fps |
| Embedded Audio Output | HDMI |
Connectivity
| Other I/O | 1 x Micro-USB Service |
| HDCP Support | , Version 2.3 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision |
| DTS Compatibility | DTS-HD Master Audio |
| Dolby Compatibility | Dolby TrueHD |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power I/O | 1 x Barrel (5 VDC at 1 A) Input |
| Power Consumption | 2.25 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Certifications | CE, FCC, UL *as per Manufacturer |
| Dimensions | 5.7 x 2.7 x 0.7" / 14.5 x 6.9 x 1.8 cm |
| Weight | 0.6 lb / 265 g |
Packaging Info
| Package Weight | 1.045 lb |
| Box Dimensions (LxWxH) | 8.4 x 5.6 x 2.7" |
