Description
Obsidian RDM6D Overview

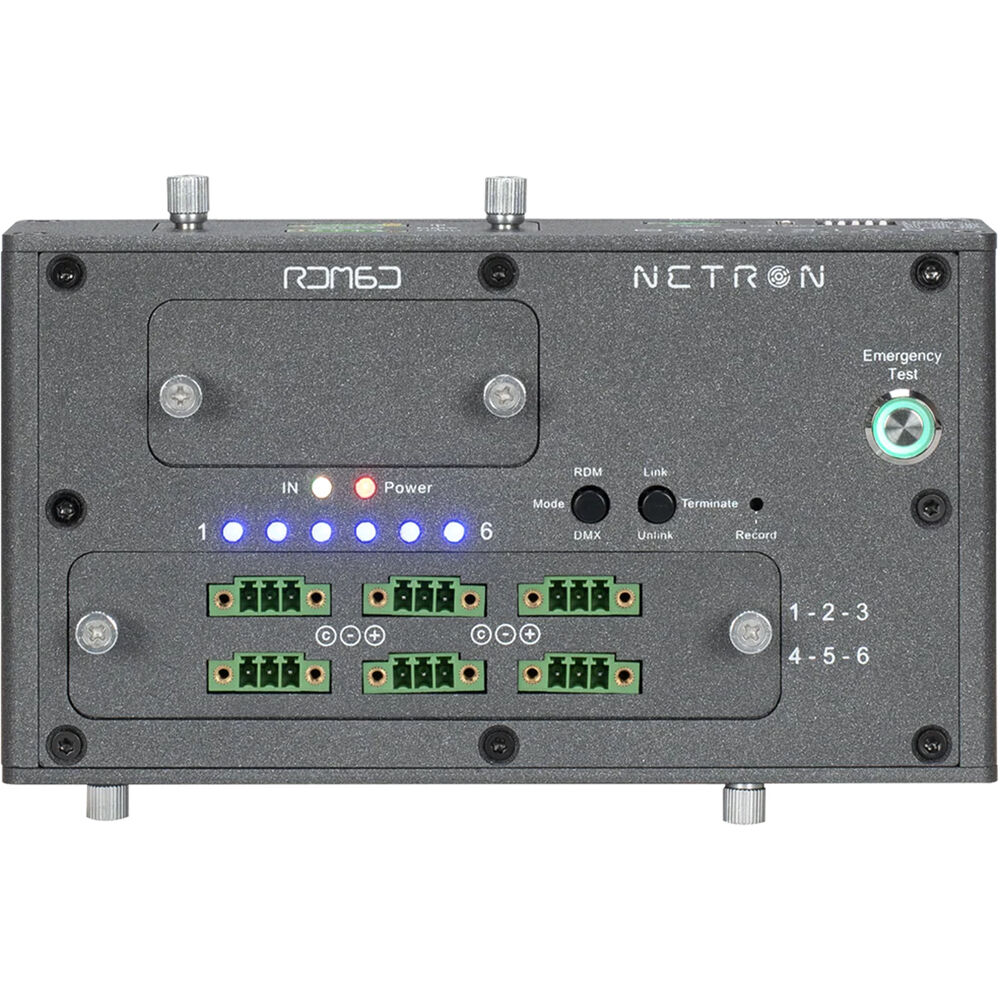

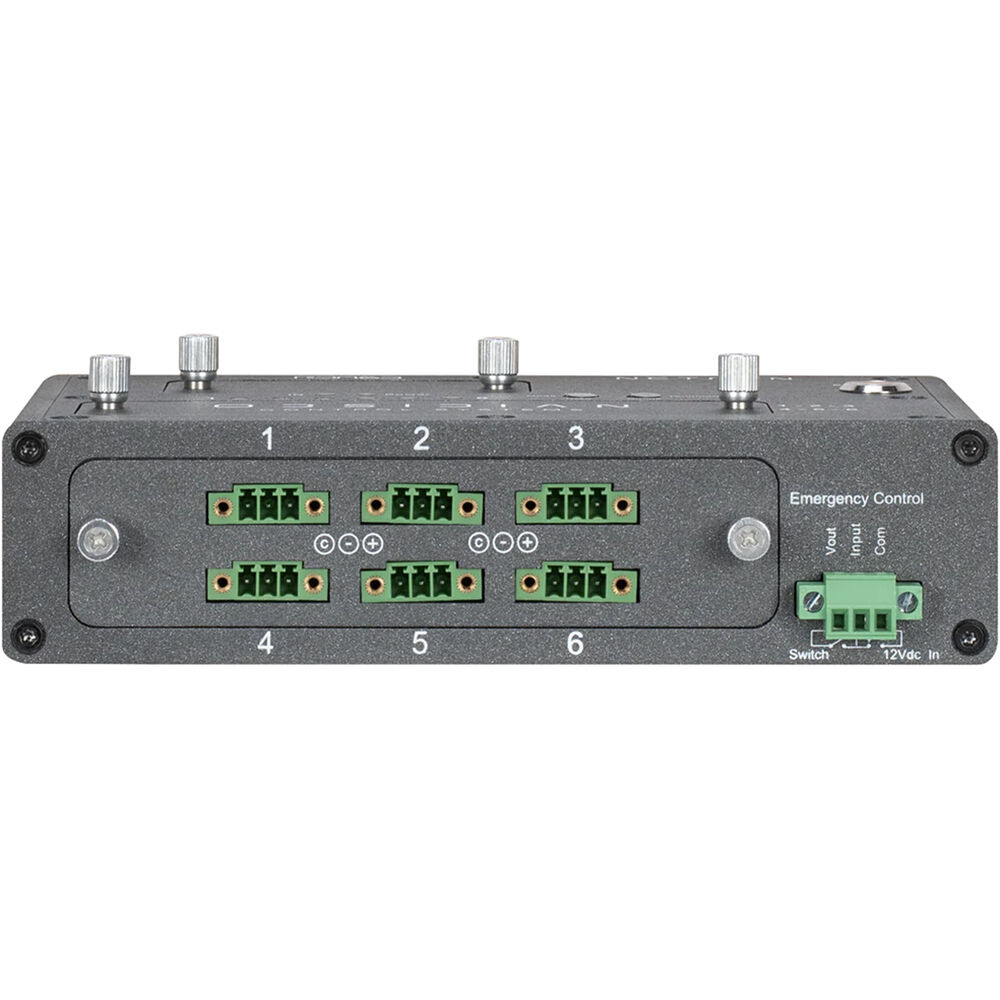

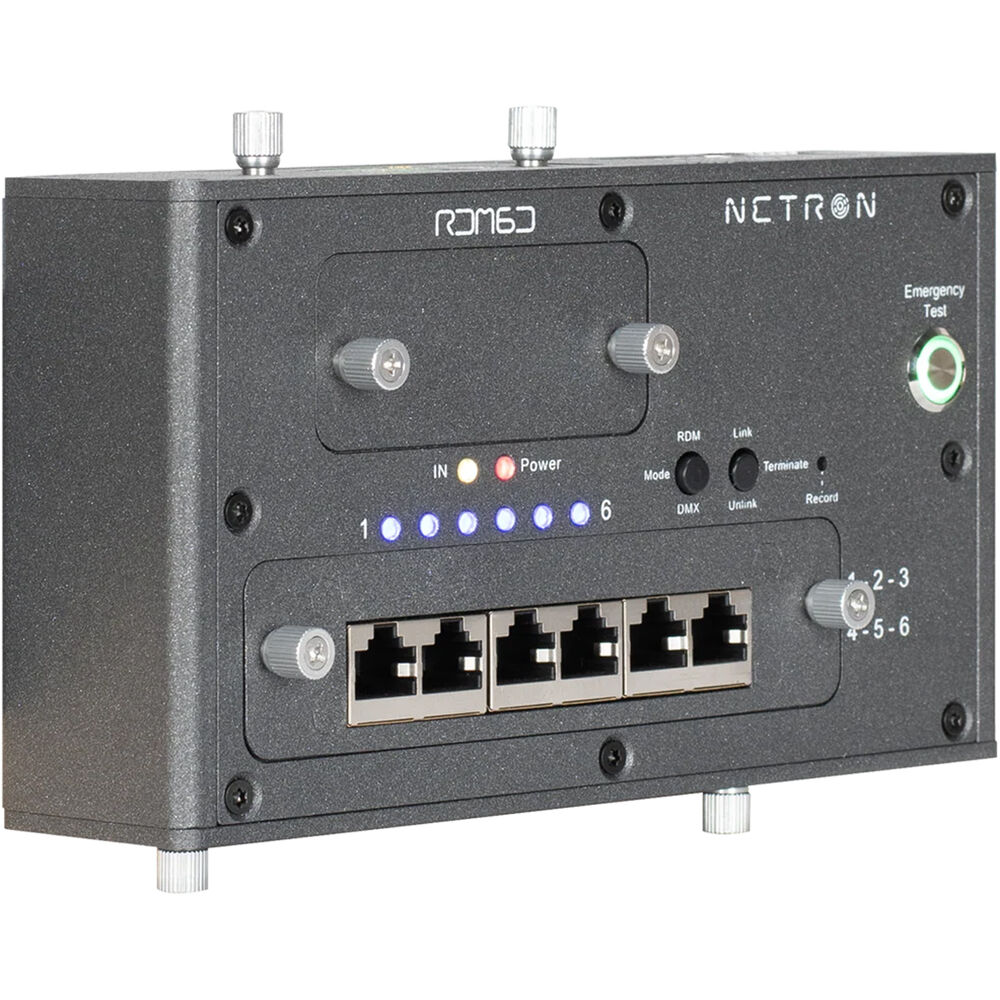

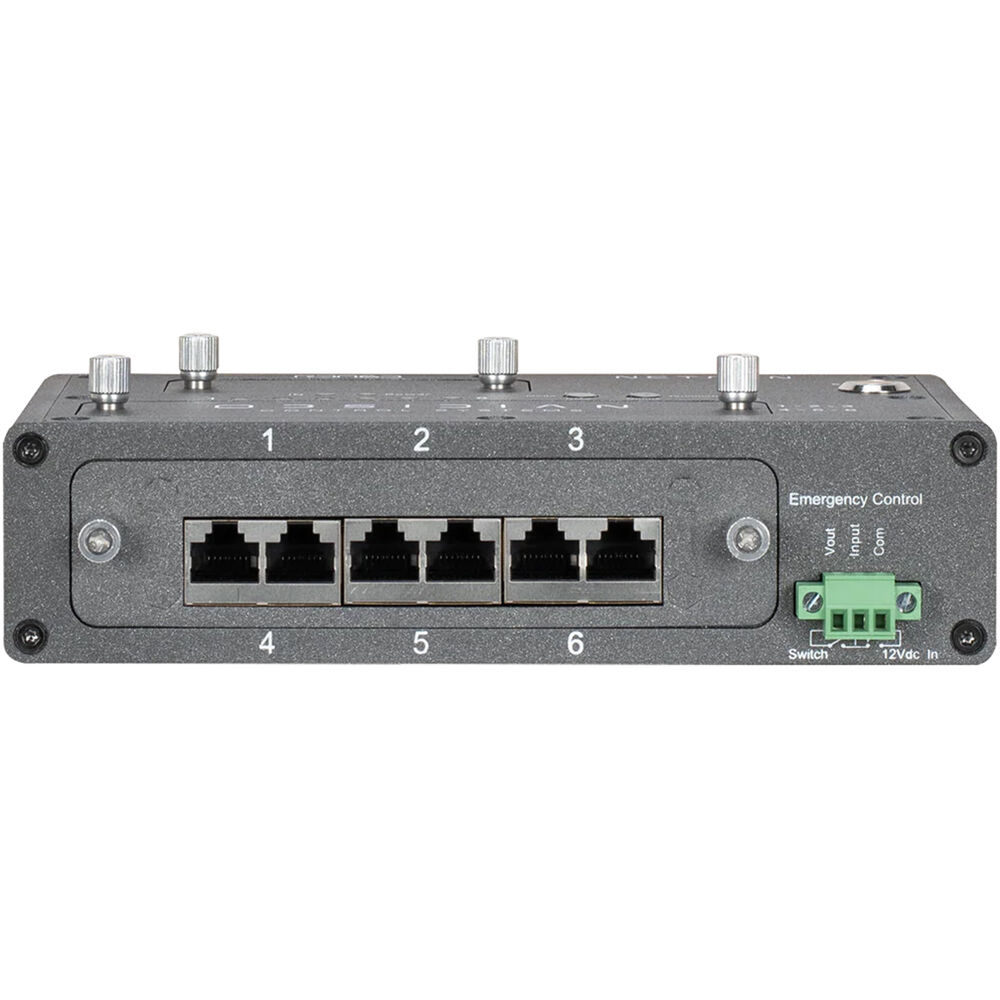

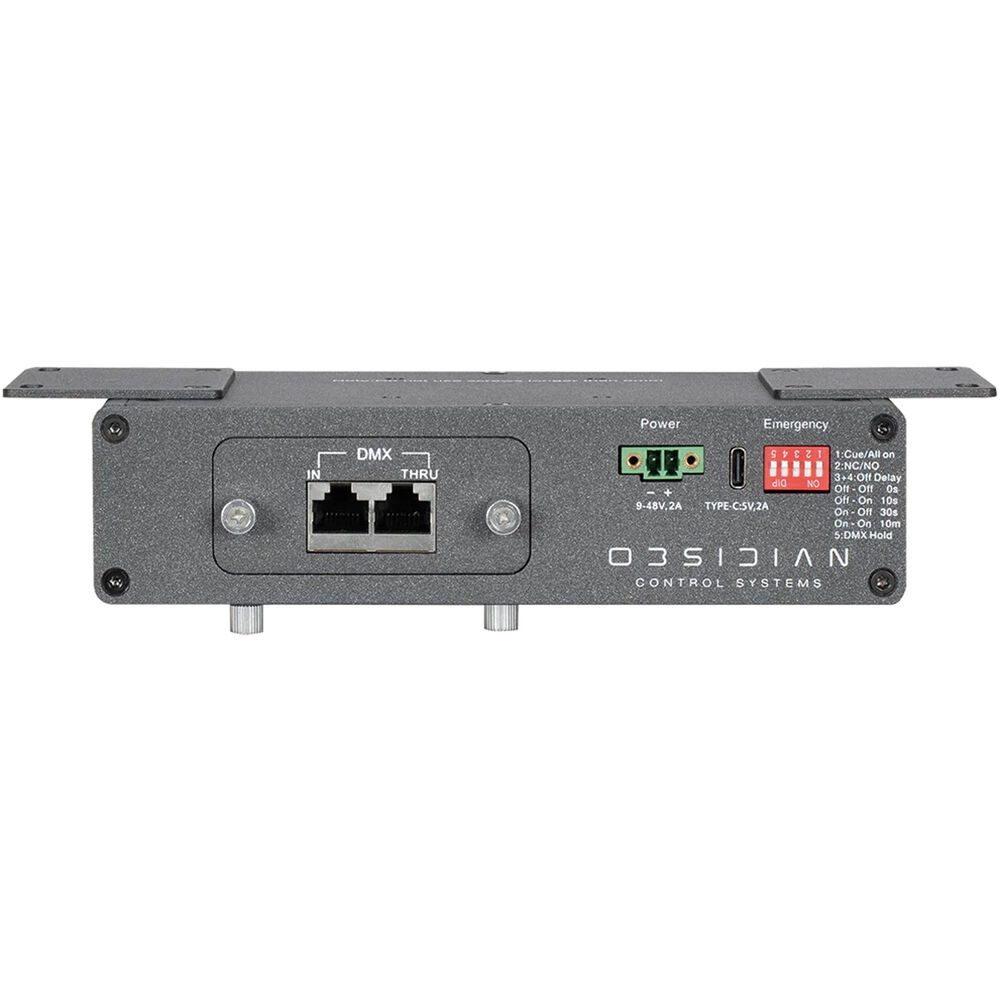

The RDM6D DIN Rail Wall Mount DMX/RDM Splitter from Elation Professional is a versatile DMX/RDM splitter with configurable ports for reliable operation. The splitter offers six wire terminal or RJ45 outputs and DMX in/thru connectivity . You can configure the NETRON RDM6D with RJ45, screw-terminals, or IDC thanks to its exchangeable plates that can be installed on the top, bottom, or front of the unit.

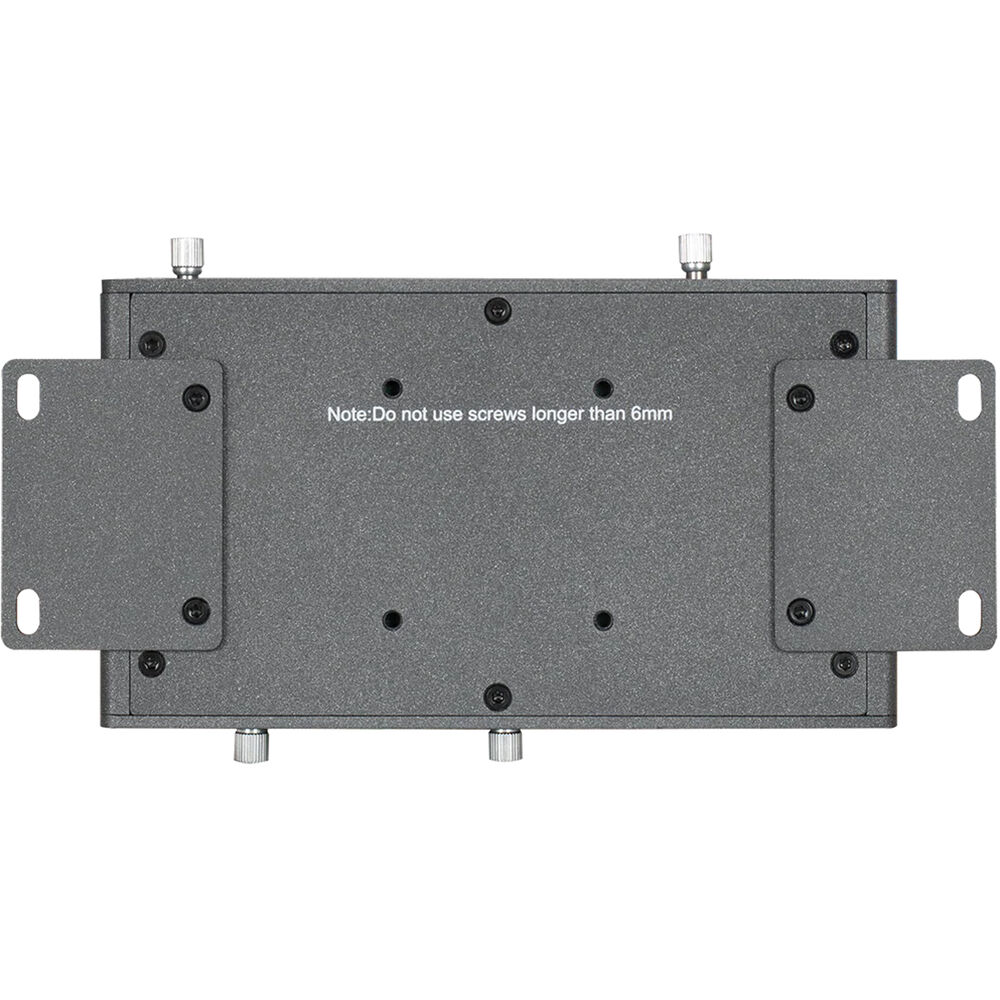

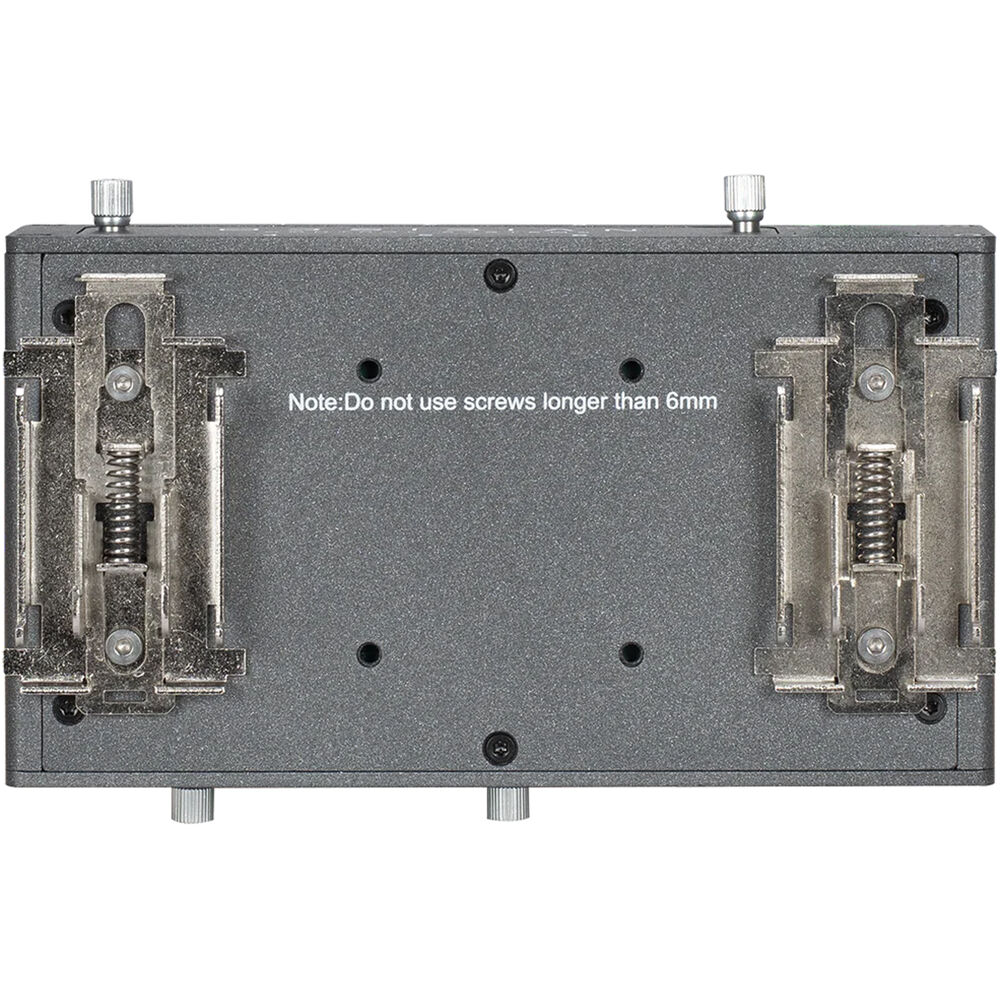

The RDM6D is rugged with opto-isolated outputs yet intuitive and compact enough for permanent installations requiring flexible wiring options. The unit supports multiple power options thanks to its DC input from 9 to 48V. Its DC input range of 9 to 45V at 2A makes it ideal for permanent installations. In addition, it can be temporarily powered using optional USB-C adapters or battery packs. Elation Professional includes DIN rail and wall mounting accessories for flexibility.
- Obsidian RDM6D DIN Rail Wall Mount DMX/RDM Splitter
- 2 x DIN Rail Clamp
- 2 x Wall Mount Plate
- RJ45 Connection Plate (6-Port)
- Terminal Block Connection Plate (6-Port)
- RJ45 Connection Plate (2-Port)
- Terminal Block Connection Plate (2-Port)
- 8 x Screw Terminal with Security Screws
- 8 x IDC Connector with Security Screws
- Limited 2-Year Manufacturer Warranty
Obsidian RDM6D Specs
| Inputs/Outputs |
6x RJ45 Output
|
| Power Source |
Proprietary
|
| Inputs/Outputs |
6x RJ45 Output
|
| Power Source |
Proprietary
|
| Input Power |
9 to 48 VDC
|
| Certifications |
CE, UL924, cETLus
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Dimensions |
5.6 x 4.7 x 2.1" / 14.2 x 11.9 x 5.3 cm
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78708.7 |
| 3-5 | ₹ 77905.55 |
| 5-10 | ₹ 76299.25 |
| 10+ | ₹ 74692.95 |
Bulk discount will be automatically applied during checkout based on quantity.
