Description

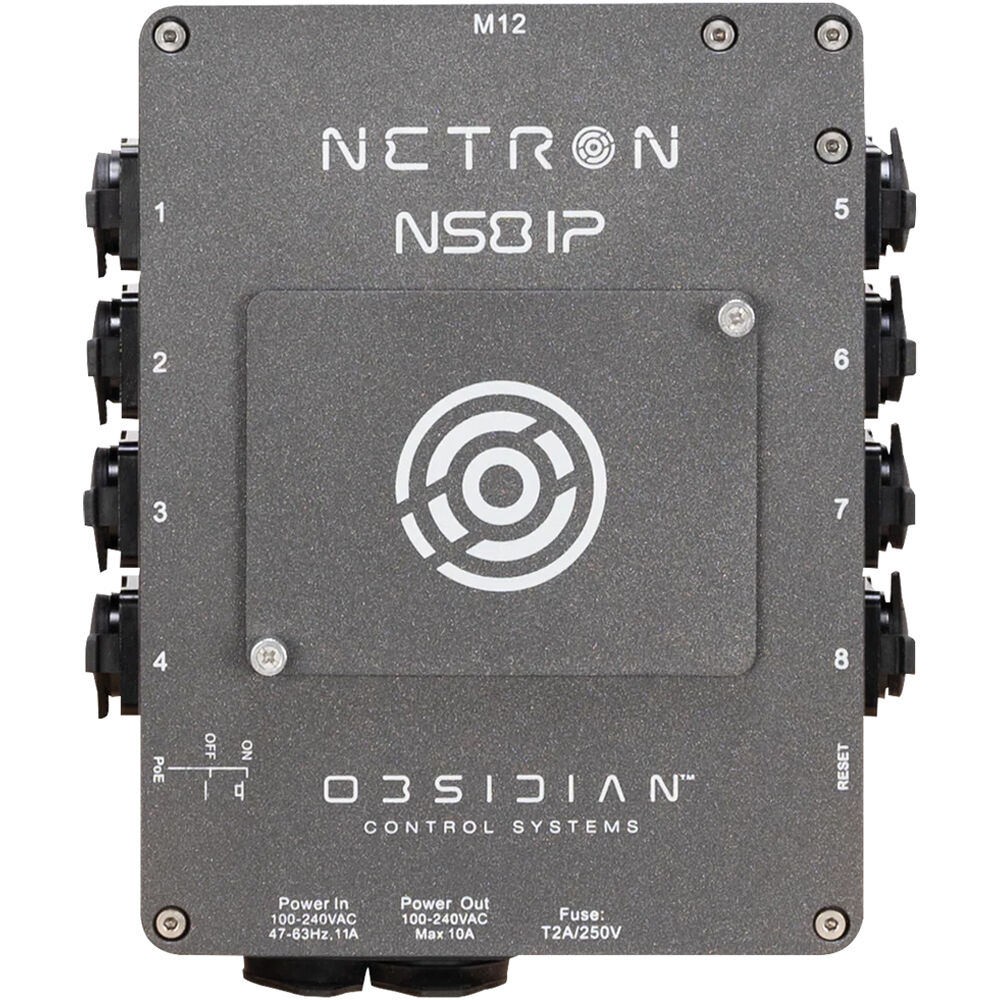

Obsidian 8-Port Gigabit Network Switch Overview

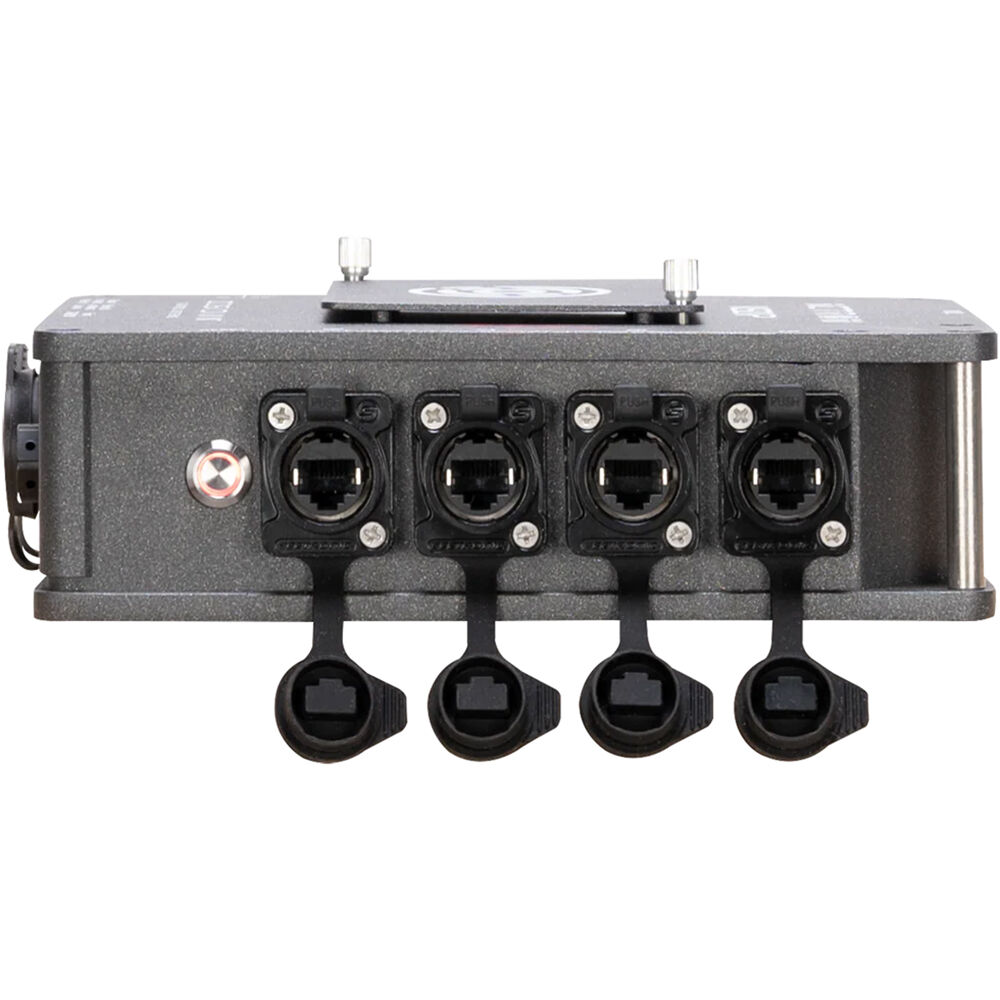

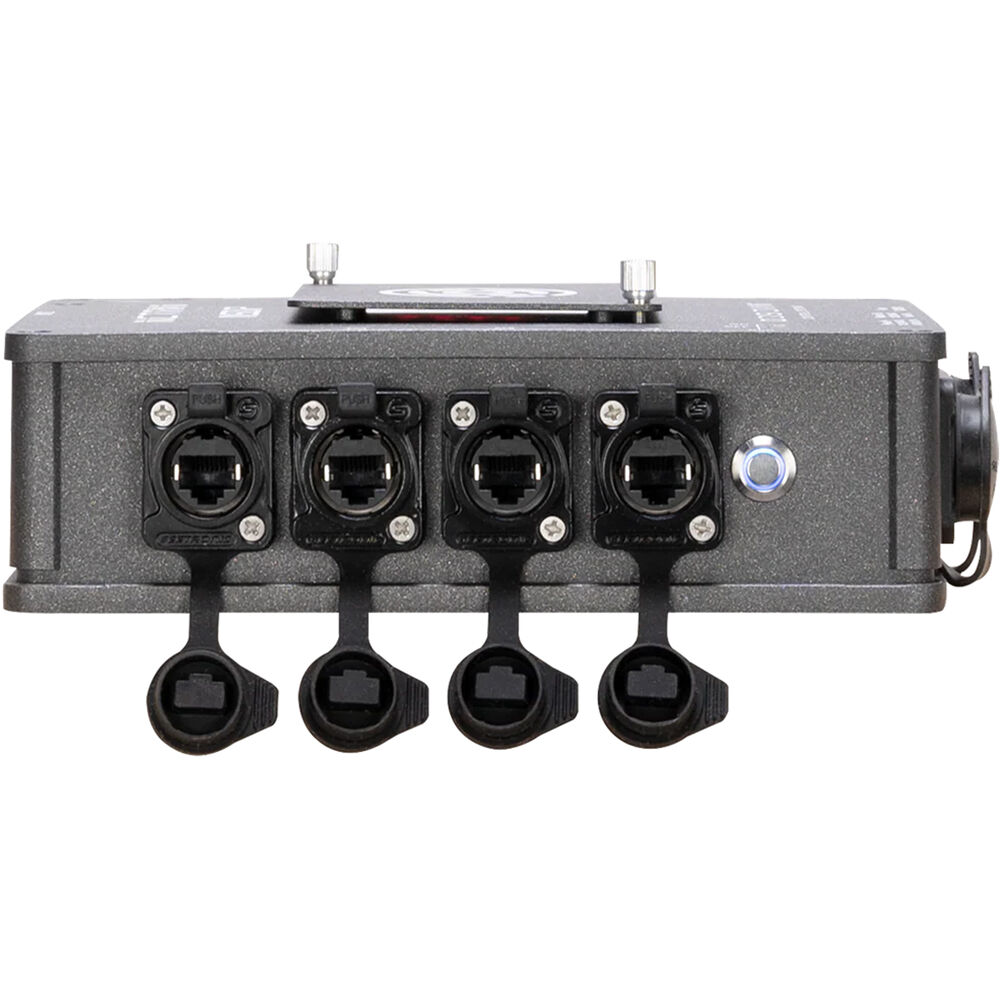

Distribute data and power to NETRON nodes and PoE-compatible network devices with the 8-port NS8 IP PoE Network Switch from Elation Professional?with a convenient IP66 rating and PoE+ support. This outdoor network switch features eight RJ45 Gigabit Ethernet ports that provide a wired connection to handle intensive data in entertainment applications. The NS8 IP has a 10 Gbps switching capacity with 15W PoE and 30W PoE+ maximum power per port. A 4.9' long locking IP65 power cable is also included for 100 to 240 VAC. Its IP66 rating makes it a great choice for live production and installations in need of a fully sealed rugged exterior housing unit with truss and wall-mounting options.
- Total power budget of 100W
- IP65 locking power in/thru
- Plug-and-play setup with factory and user presets
- Internal webpage for remote configuration
- Broadcast, Unicast, and Multicast support
- Convection-cooled design
- PoE power switch and reset switch

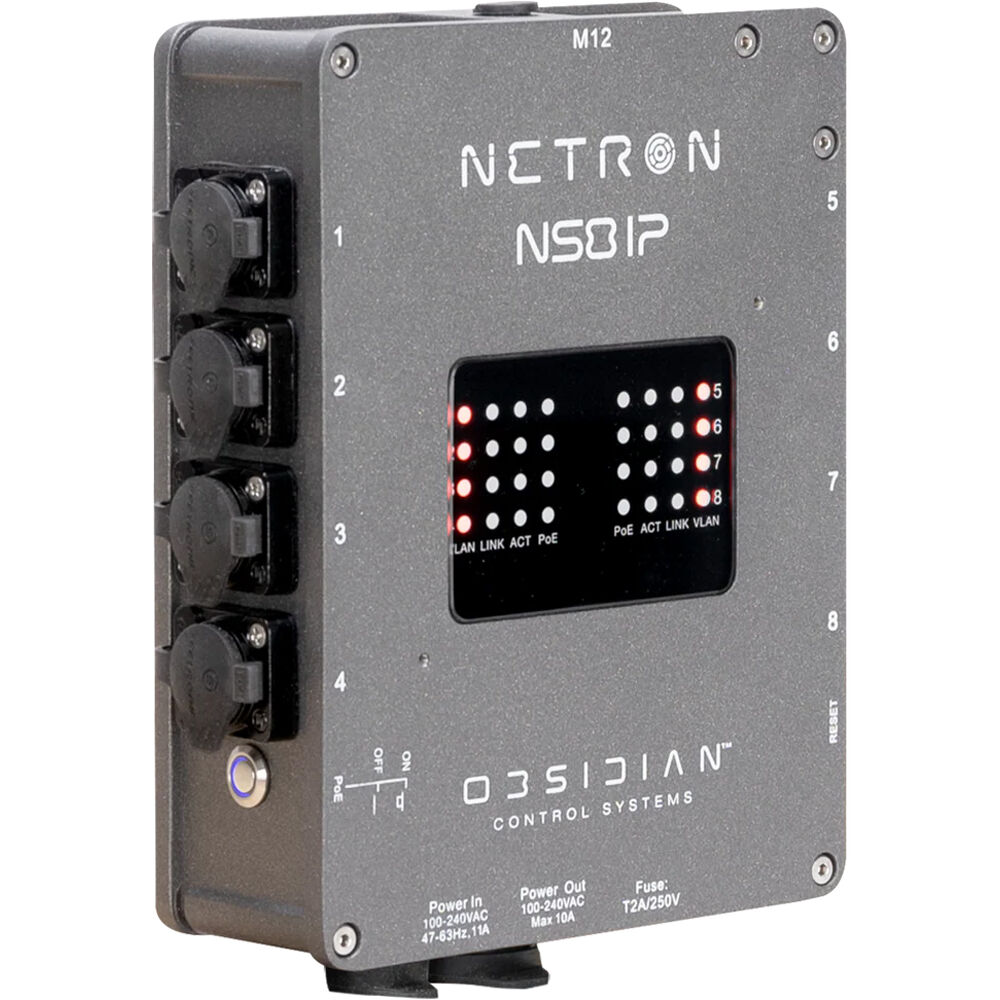

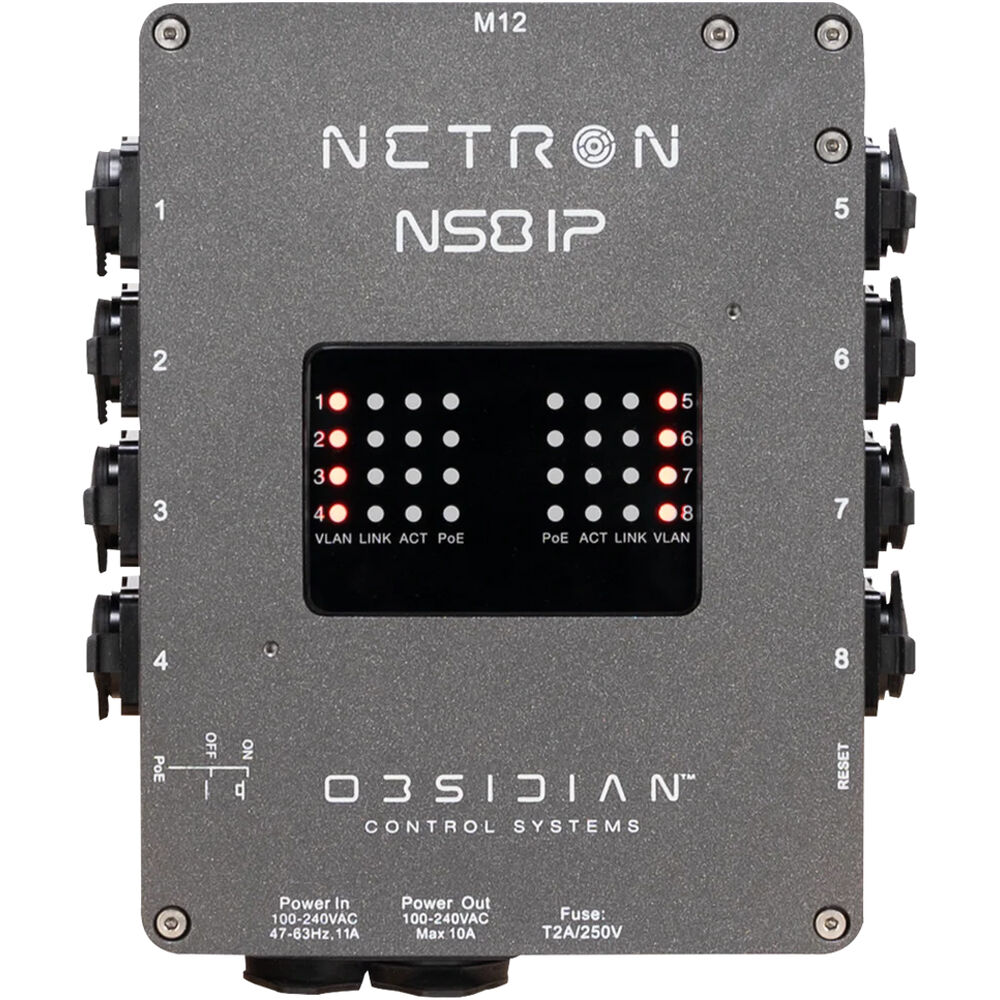

- LED feedback for activity, link, PoE, and VLAN settings
- IP66 rating and cETLus, CE, and FCC approvals
- Obsidian NS8 IP PoE Network Switch (8-Port)
- Locking IP65 Power Cable (4.9')
- 2 x Wall Mount Plate
- M12 to M10 Thread Adapter
- Limited 2-Year Manufacturer Warranty
Obsidian 8-Port Gigabit Network Switch Specs
| Inputs/Outputs |
8x RJ45
|
| Power Source |
AC Power, Power Over Ethernet (PoE)
|
| Protocol |
ArtNet, sACN
|
| Inputs/Outputs |
8x RJ45
|
| Cooling System |
Active
|
| Power Source |
AC Power, Power Over Ethernet (PoE)
|
| Power Consumption |
100 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Port Power |
15 W
|
| Protocol |
ArtNet, sACN
|
| Certifications |
CE, FCC, cULus
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Material of Construction |
Aluminum
|
| Cable Length |
4.9' / 1.5 m
|
| Dimensions |
9.5 x 7.0 x 3.2" / 242.0 x 179.0 x 82.3 mm
|
| Weight |
4.6 lb / 2.1 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
